Emcotec - PowerSmoke 740 smoke pump

Emcotec - PowerSmoke 740 smoke pump

Emcotec - PowerSmoke 740 smoke pump

SKU: EM-A90050

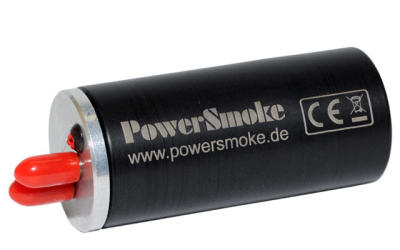

PowerSmoke 740 smoke pump
You Save:


High grade toothed wheel pump with metallic gear. he pump can be operated either by receiver current (e.g. by a battery switch / dual power supply) or by a separate battery (e.g. 2S LiPo battery).

The PowerSmoke 740 HV is the follow-up model of the PowerSmoke 600 with revised electronics and enhanced software features.

The smoke-pump can be controlled (at the pressure side) either with an electric-magnetically valve (directly controlled by pump-electronics) or a (low cost) valve especially developed by us. "Pinpointed" turning the smoke on or off is accomplished and a so called "after-smoke" is inhibited. Both valves are available as accessory.

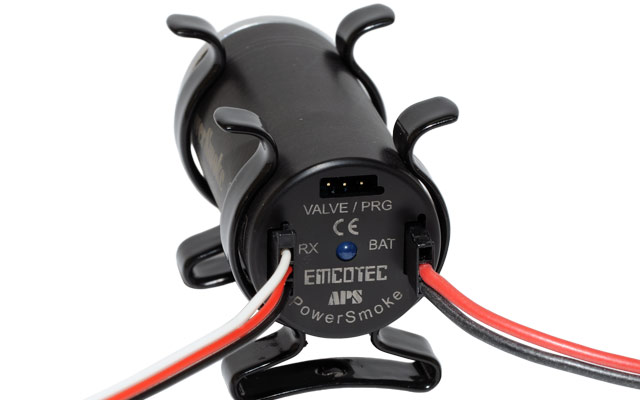

Delivery incl. retaining clamps, screws, receiver connection cable, programming jumper and operating manual.



  • Dimensions: 67mm x 27mm (2.64in x 1.06in) (lenght x diameter)
  • Rest current consumption: approx. 30mA (receiver switched on)
  • Weight: 90g (3.17oz)
  • Maximum delivery pressure: approx. 4,5 bar
hose ID 250ml/min 500ml/min 750ml/min 1000ml/min
Ø 2.5mm (0.1in) 600mm (23.62in) 300mm (11.81in) --- ---
Ø 4.0mm (0.16in) 1500mm (59.06in) 1000mm (39.37in) 750mm (29.53in) 600mm (23.62in)

Table 1: max. hose lenght at innerØ 2.5mm (0.1in) or 4.0mm (0.16in) depending of delivery rate.

Performance data

supply voltage [V] delivery rate [ml/min.] power consumption [mA]
3.7 330 900
4.8 430 1100
6.0 550 1200
7.4 700 1450
9.6 not permitted >not permitted
11,1 >not permitted >not permitted

Table 2: delivery rate, power consumption
