Description

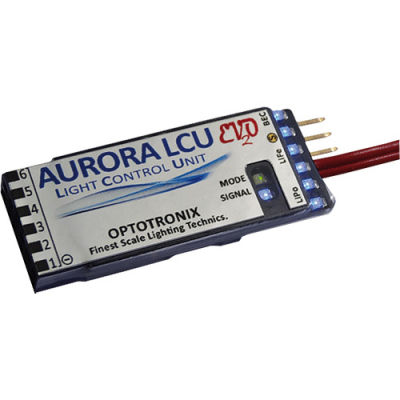

Versatile new version of the 6 channel lighting electronic with numerous light functions and dim effects.
The Aurora LCU EVO2 offers more scale flash sequences (24), beacons (4) and afterburner simulations (10) at double output rating of 3 ampere per output. New features are the soft start dim effect (optionally slow dimming instead of hard switching on) as well as a float plane landing light sequence: When landing the spots of float planes are shining alternating.
Furthermore with multigun effects now machine gun or Gatling gun fire can be simulated.
The intelligent firmware stores the desired activating point for each output. So activating of specific light functions can be done also when flaps are set or the gear is released.
The Aurora LCU EVO2 can be operated with up to 13 volts (3S LiPo). So also connecting of LED lighting which is designed for 12 volts (LED stripes HV LEDs, etc...) is possible.
Datasheet
Specifications lighting electronics
Input voltage 3,1V...13,0V (1s/2s/3s Lipo, 2s/3s LiFePO, NiMh, BEC)
Operating current max. 34mA
Quiescent current 50ìA (< 440mAh / Jahr) im Schlafmodus
Receiver current max. 8mA
Signal input galvanisch getrennt, mit Servopulsverstärker
Outputs 6x Permanent / Flash / Beacon / Afterburner / Multi]Gun)
Downloads
- Instructions (1,585 KB)
