Span: 85' (2160mm).
Weight with turbine: 38 - 40 lbs (17 - 18 kg)
Turbine: 31~40Lb (14~18kg) thrust

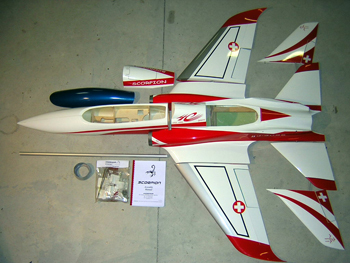

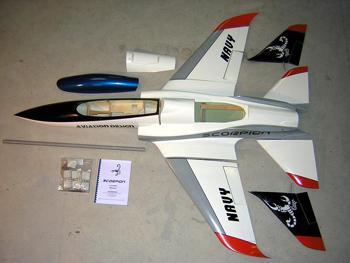

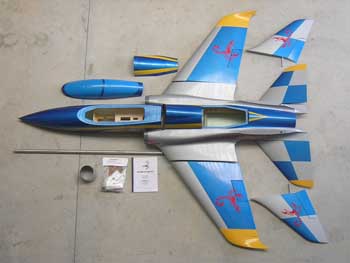

SUPER Scorpion ARF model includes :
* High quality epoxy-glass fuselage in 2 parts painted.
* All plywood and wood parts premounted.
* Epoxy glass inlets fitted.
* Fully molded wings, fins and stabs painted.
* Access hatch requiring no additional framework.
* Pre cutted dorsal air brake.
* All hardware (screws, hatch latches, servo covers, ....).
* Aluminium joining tube.
* Instructions in English.

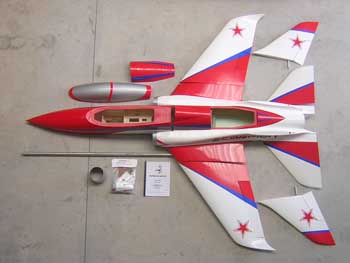

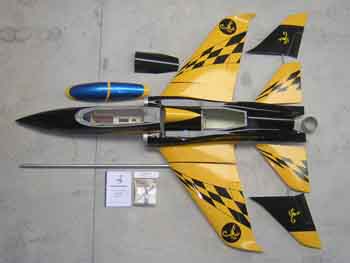

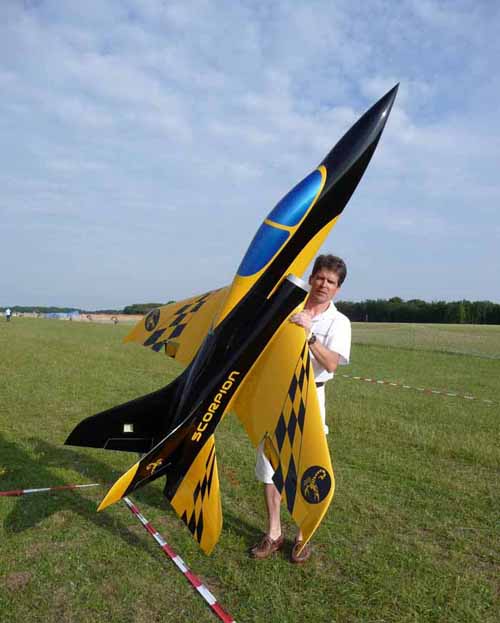

Model comes in 7 versions : · all white painted. · Navy color schem. · Swiss color schem. · Yellow / black crossed. · Silver Blue. · Russian.
Parts required to complete the model :

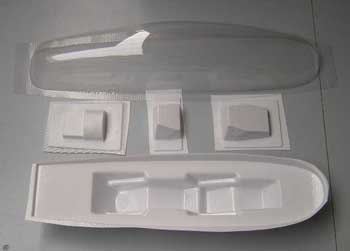

· Clear canopy + vacuum parts for cockpit.

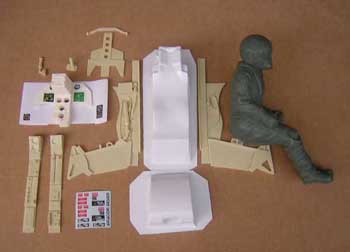

· Cockpit detail kit for single seat incl. 1/7 jet pilot, 1/7 ejector seat & instrument panel.

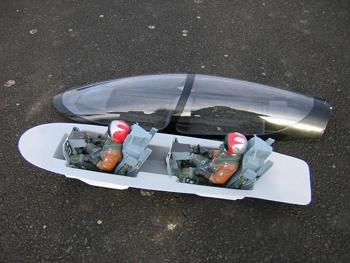

· Cockpit detail kit for twin seat incl. 2 jet pilots, 2 ejector seats & instrument panel.

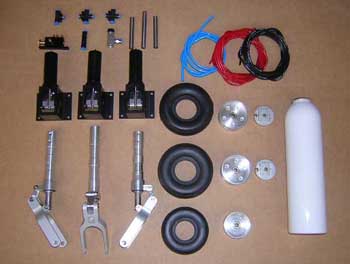

· Deluxe landing gear : complete 3 gears system with 3 oleo legs, all CNC machined with 3 wheels (on bearings) and brakes. All valves and tubing supplied. Very high quality and strong, reliable for grass operation.
· Deluxe landing gear + 2 electrovalve for gear and brakes.

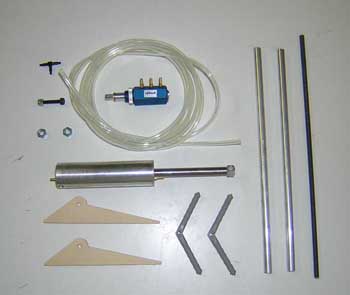

· Air brake set incl. air cylinder & air control system.
· Air brake + electrovalve.

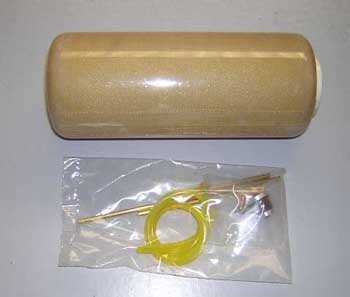

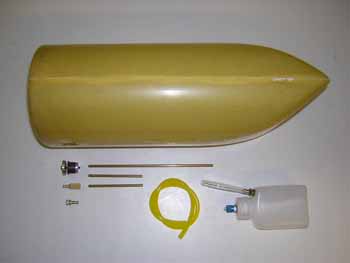

· Kevlar fuel tanks (4.2 liters) incl. tubing, nipples and clunk.
· Kevlar fuel tanks (4.2 liters) + BVM upper tank.
· Smoker kevlar fuel tanks (1.1 liter).
· Stainless steel double walded tailpipe.
· 3D tailpipe.
· Navy decals.
- Istruzioni (1,885 KB)
- Schema Navy (14 KB)
- Schema Russian (33 KB)
- Schema Swiss (108 KB)
- Schema Silver Blue (33 KB)
- Schema Yellow/Black (31 KB)
- Air brake (27 KB)
- Cappottina pilota (21 KB)
- Cockpit kit (25 KB)
- Pilotini (17 KB)
- Carrelli (33 KB)
- Serbatoio (23 KB)
- Serbatoio fumogeno (26 KB)
- Foto 1 (46 KB)
- Foto 2 (40 KB)
- Foto 3 (52 KB)
- Foto 4 (9 KB)
- Revoc bags per Super Scorpion (246 KB)
