SKU: ULSPOT16X080X2WE
UniLIGHT 8Wx2 Gears-Spotlight, UltraPower, 16mm white
Price:
€28.37
Listing:
You Save:
(%)

Description

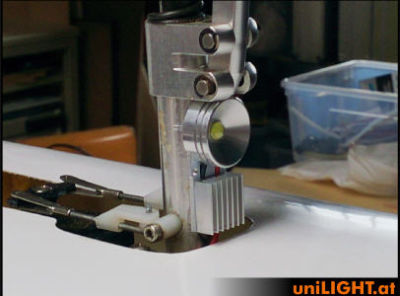

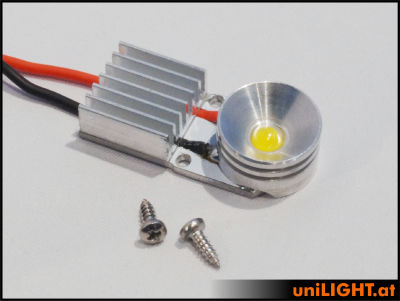

Small Ultra-Power spotlight with up to 400 Lumen, CNC manufactured aluminium reflector with 16mm diameter and assembly plate for horizontal cooling. Ideal on undercarriages or as folding spotlights. The enclosed heatsink should necessarily be glued on for cooling purposes. It is recommended to directly glue the spotlight on the undercarriage leg with thermal conductive adhesive, then heatsink and mounting flange can be completely removed, so that only the reflector remains.

Attention: this Ultra-Power luminaire has no temperature protection, a heat bridge connection to the carrier (undercarriage leg) is highly recommended.

Direct operation with 2S LiPo (8V). With 3S (12V), the additional resistor has to be soldered in or use a 8W connection cable (accessories). Please ensure sufficient cooling air during operation.

The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating. Note: The LED lights are extremely bright! Never look directly into a LED!

Datasheet

Technical Data

Performance: 4W reference power
Voltage: 8V, use enclosed resistor for 12V
Electricity: 0.7A
Beam angle: ~100°
Light intensity: ~400 Lumen WHITE
Light intensity: ~350 Lumen WARMWHITE
Dimension: D16x36x9mm
Weight: 6g (without cable)
Delivery: ready to use with 1m connection cable and additional resistor for 3S operation
Size comparison uniLIGHT system
