OPTOTRONIX Luci di posizione ACL 11mm (0,43"in) rotonda bianca

OPTOTRONIX Luci di posizione ACL 11mm (0,43"in) rotonda bianca

OPTOTRONIX Luci di posizione ACL 11mm (0,43"in) rotonda bianca

SKU: OPT4110W
Luci di posizione ACL 11mm (0,43"in) rotonda bianca
Price:
€25.52
Listing:
You Save:
(%)
Product is out of stock

Description

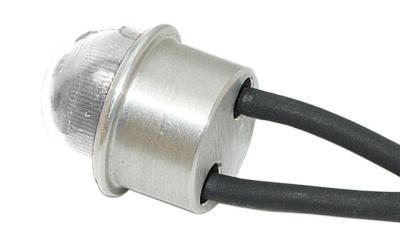

Position light/ACL 11mm (0.43in) round -

Completly mounted, super scale and extremely bright: our position lights/ACL DeLuxe are composed of a SEOUL 3 watt emitter, a scale covering and a cnc made aluminium case. They are fully wired ready-made with a 30cm (11.81in) twisted wire. Can be used as ACL (flash light) or position light (pay attention to a sufficient cooling in the continuous operation especially).

Attention: Within continuous operation the LEDs must not be illuminated longer than 15 minutes. The LEDs are going to be very hot!

Attention: LED is very bright, don't look into the cone of light from closer distance.

Connection to Aurora LCU: with suitable resistor for 1 watt permanent operating or 3 watt flash operating. Connection to NightFire LCU: directly without resistor.

Before using a suitable resistor must be soldered. Find an overview of suitable resistors within the section Scheda tecnica.

Delivery includes resistors.

This item is available in different variants. Please select the desired variant.

Datasheet

2.5 watt operating: Nominal wattage, good cooling necessary. Normal brightness.
Color White Red Green
max. current 700mA 700mA 700mA
Voltage 3.60V 2.60V 3.60V

R at 1S LiPo 0R82 2R2 0R82
R at 4.8V NiMH 2R7 3R9 2R7
R at 2S LiPo 6R8 8R2 6R8
R at 2S LiFePO4 4R7 6R8 4R7

R=Resistors with 3W wattage at LED nominal performance

3.7 watt operating: Peak performance for blink operating. Highest brightness.
Color White Red Green
max. current 1000mA 800mA 1000mA
Voltage 3.70V 2.70V 3.70V

R at 1S LiPo 0R47 1R8 0R47
R at 4.8V NiMH 1R8 3R9 1R8
R at 2S LiPo 4R7 6R8 4R7
R at 2S LiFePO4 3R3 5R6 3R3

R=Resistors with 3W wattage at maximum LED performance

Color White Red Green
Operating temperature -40°C to 85°C
-40°F to 185°F
-40°C to 85°C
-40°F to 185°F
-40°C to 85°C
-40°F to 185°F
Storage temperature -40°C to 100°C
-40°F to 212°F
-40°C to 100°C
-40°F to 212°F
-40°C to 100°C
-40°F to 212°F
