OPTOTRONIX Luci di atterraggio 20mm (0,79in) "VIPER"

OPTOTRONIX Luci di atterraggio 20mm (0,79in) "VIPER"

OPTOTRONIX Luci di atterraggio 20mm (0,79in) "VIPER"

SKU: OPT4020
Luci di atterraggio 20mm (0,79in) "VIPER"
Price:
€26.55
Listing:
You Save:
(%)

Description

Landing lights 20mm (0.79in) "Viper" -

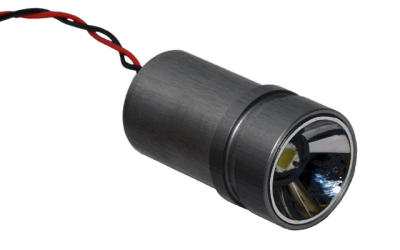

20mm (0.79in) landing light with a viewing angle of 20° and 1 to 3W power.

High quality landing light with CNC milled and anodized casing. Ready to install.

Attention: Within continuous operation the LEDs must not be illuminated longer than 15 minutes. The LEDs are going to be very hot!

Attention: Landing light is very bright, don't look into the cone of light from closer distance.

Before using a suitable resistor must be soldered. Find an overview of suitable resistors within the section Scheda Tecnica.

Delivery includes resistors.

Datasheet

1 watt operating: Reduced wattage, low cooling necessary. Reduced brightness.
Color White
max. current 350mA
Voltage 3.25V

R at 1S LiPo 2R7
R at 4.8V NiMH 6R8
R at 2S LiPo 15R
R at 2S LiFePO4 12R

R=Resistors with 3W wattage at reduces LED performance

2.5 watt operating: Nominal wattage, good cooling necessary. Normal brightness.
Color White
max. current 700mA
Voltage 3.60V

R at 1S LiPo 0R82
R at 4.8V NiMH 2R7
R at 2S LiPo 6R8
R at 2S LiFePO4 4R7

R=Resistors with 3W wattage at LED nominal performance

3.7 watt operating: Peak performance for blink operating. Highest brightness.
Color White
max. current 1000mA
Voltage 3.70V

R at 1S LiPo 0R47
R at 4.8V NiMH 1R8
R at 2S LiPo 4R7
R at 2S LiFePO4 3R3

R=Resistors with 3W wattage at maximum LED performance

Color White
Operating temperature -40°C to 85°C
-40°F to 185°F
Storage temperature -40°C to 100°C
-40°F to 212°F
