OPTOTRONIX Glider ACL rossa

OPTOTRONIX Glider ACL rossa

OPTOTRONIX Glider ACL rossa

SKU: OPT4141R
Glider ACL rossa
Price:
€30.66
Listing:
You Save:
(%)

Description

Attention: LED is very bright, don't look into the cone of light from closer distance. Never focus the bright LED to the eyes of a human or an animal.

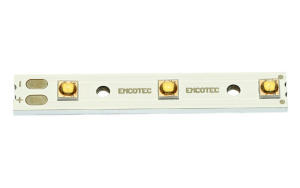

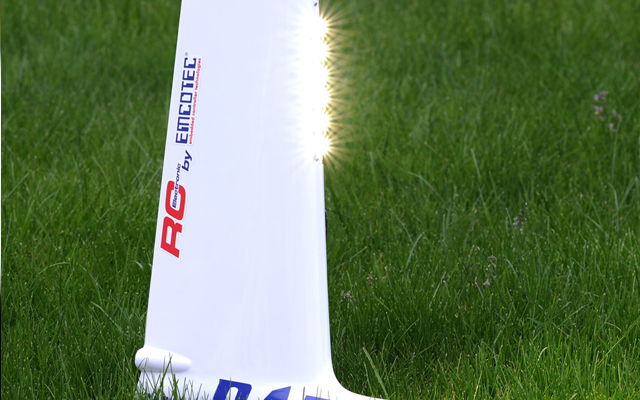

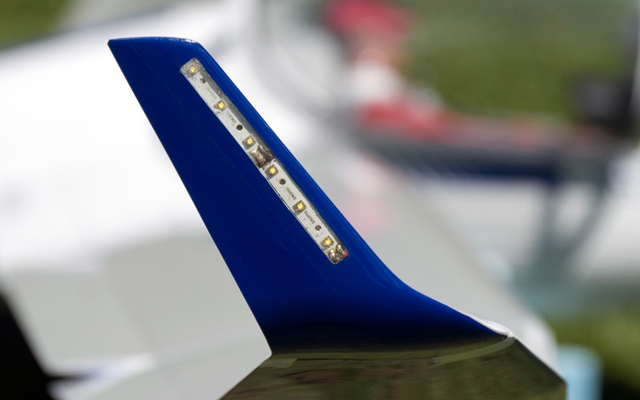

Anti collision light (ACL) consisting of ultra bright LEDs, among others designed for glider planes. Perfectly suitable for mounting into the vertical tail or the winglets. Easy operating with flash electronic (e. g. Optotronix Aurora LCU, available optionally, item no. OPT2000). Due to the extremly bright LEDs good visibility even in high altitudes at sunny weather.

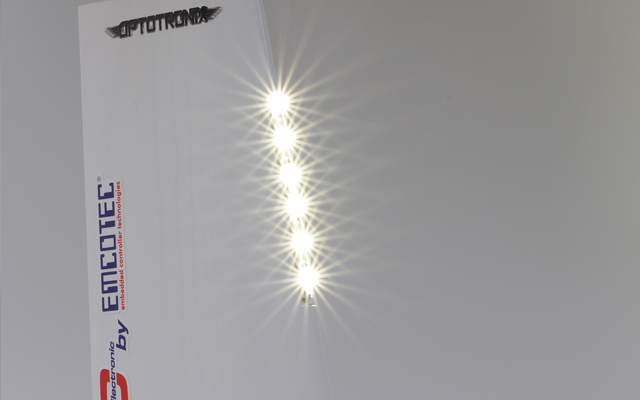

If more brightness is desired two Glider ACL can be mounted in a row.

We recommend using the Universal ACL only in flash operation mode. When operating with Aurora LCU only the functions 1 to 21, when operating with Firefly LCU only the functions 1 to 9 can be used.

Attention: Please finish the programming procedure before connecting the Glider ACL. If the Glider ACL accidentally is connected to a channel which uses permanent light as default the Glider ACL can be damaged or destroyed even when only operated temporary.

Before using a suitable resistor must be soldered. Find an overview of suitable resistors within the section Scheda tecnica

Datasheet

Glider ACL

Resistors

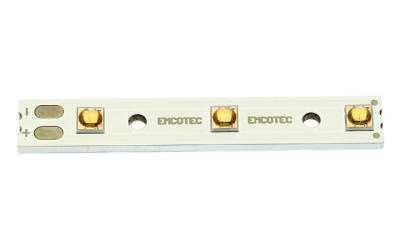

Single PCB Glider ACL
Color White Red Green

R at 1S LiPo no resistor 0R57 no resistor
R at 4.8V NiMH 0R33 1R9 0R47
R at LiPo 0R82 2R2 1R8
R at 2S LiFePO4 0R68 3R9 1R5
Two Glider ACL PCBs in a row
Color White Red Green

R at 1S LiPo not possible not possible not possible
R at 4.8V NiMH not possible not possible not possible
R at 2S LiPo no resistor 0R47 no resistor
R at 2S LiFePO4 not possible not possible not possible

Specifications

Color White Red Green

Voltage range 2.7V ... 3.45V 2.3V ... 2.5V 3.3V ... 3.8V
max. voltage 3.45V 2.5V 3.8V
max. current 4500mA 2100mA 2100mA
max. wattage 15W 6,3W 8,4W
Angle of radiation 125° 123° 128°
Brightness 1536lm 165lm 285lm
Color temperature 5000K - -
Wave length - 625nm 525nm
Dimensions 46.2 x 7.2 x 3.6mm (1.82 x 2.83 x 0.14in)
Weight 1.45g (0.05oz)
Connection Soldering pads for cables
