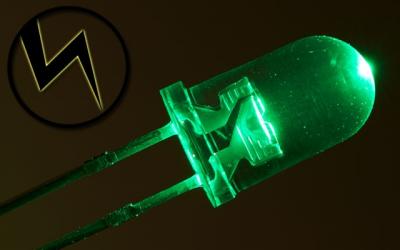

OPTOTRONIX 5mm flash LED (0.2in) 15.000mcd 15° (2 pz) verde

OPTOTRONIX  5mm flash LED (0.2in) 15.000mcd 15° (2 pz)  verde

OPTOTRONIX 5mm flash LED (0.2in) 15.000mcd 15° (2 pz) verde

SKU: OPT4250V
5mm flash LED (0.2in) 15.000mcd 15° (2 pz) verde
Price:
€2.98
Listing:
You Save:
(%)

Description

5mm flash LED (0.2in)(2 pieces)

La confezione contiene 2 pezzi

The 5mm (0.2in) LEDs flash extremly bright and are visible even over far distances.

Find an overview of suitable resistors within the section Scheda tecnica

ATTENTION: the white and the blue LED are blinking LEDs with approx. 1.5Hz frequency and duty cycle 1:1. The red and the green LED are flashing LEDs with approx. 2Hz frequency and duty cycle 1:2 (on/off).

This item is available in different variants. Please select the desired variant.

Datasheet

5mm flash LED (0.2in)(2 pieces)

>
Color White Red Green Blue
Brightness 15.000mcd 15.000mcd 15.000mcd 9.000mcd
Angle of radiation 20° 15° 15° 15°
max. current 30mA 20mA 20mA 20mA
Voltage 4.5V 2.2V 3.6V 3.6V

R at 1S LiPo 2R21 82R 27R 27R
R at 4.8V NiMH 47R 162R 100R 100R
R at 2S LiPo 150R 274R 221R 221R
R at 2S LiFePO4 100R 249R 162R 162R

R=Resistors with 0.6W wattage

Color White Red Green Blue
Wattage 0.15W 0.08W 0.1W 0.1W
Operating temperature -20°C bis 50°C
-4°F to 122°F
-20°C bis 50°C
-4°F to 122°F
-20°C bis 50°C
-4°F to 122°F
-20°C bis 50°C
-4°F to 122°F
Storage temperature -40°C bis 80°C
-40°F to 176°F
-40°C bis 80°C
-40°F to 176°F
-40°C bis 80°C
-40°F to 176°F
-40°C bis 80°C
-40°F to 176°F
Soldering temperature 260°C (5s)
500°C (5s)
260°C (5s)
500°C (5s)
260°C (5s)
500°C (5s)
260°C (5s)
500°C (5s)
