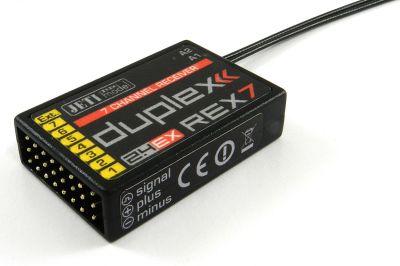

Jeti RX Duplex J1D EX R7

Jeti RX Duplex J1D EX R7

Jeti RX Duplex J1D EX R7

SKU: JETRXR7
Ricevente R7 Duplex EX
To buy this product contact us at ordini@8fly.it

Description

Programmable duplex 2.4EX Rex6 receiver 2.4GHz with 40cm Antennas:

  • bi-directional communication with the transmitter
  • Transfer of the telemetry data to the transmitter
  • Receiver supply voltage indication at the transmitter, and adjustable value for triggering an alarm
  • a plurality of receivers is possible at a transmitter, receivable up to a total of 16 channels
  • adjustable Failsafe
  • Servo channels freely assignable
  • Servo travels, center position and duration adjustable
  • free mixers allocation of channels
  • Expo the channels can be set
  • internal memory for data logging and
    control signals
  • integrated expander for up to 3 sensors
  • supported protocols:
    PPM
    , EXBUS, EX ..
  • programmable functions of the slots
  • support the direct entries
  • compact dimensions
  • 32 bit processor
  • full coverage
  • programmable via the JETIBOX and wirelessly
    via the duplex DC / DS transmitter



DUPLEX EX is the successor of the well known and proven Jeti DUPLEX system and , of course, fully compatible with the previous components . The EX Series provides a significant extension of the possibilities for the transmission of telemetry data, in conjunction with the PROFI BOX or the Jeti transmitters in conjunction with the program package Flight Monitor receive user-friendly design a better overview of the operational status of your model, facilitating the setting of the system components and the way an easier processing, imaging and analysis capability of the (recorded) flight data

Datasheet

Techn. Data:



Dimensions
42x28x11mm
mass
13g
antenna length
2x 400mm
Outputs
7
temperature range
-10 to 85 ° C
input voltage
3.2 - 8.4V
Average power consumption
75mA
real-time telemetry transmission
Yes
programming
JETIBOX
satellite receiver
Yes
transmission power
15 dBm
receive Sensitivity
-106 dBm
Number EXT inputs to 3
