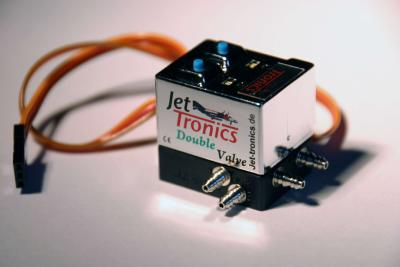

Jet-Tronics double valve

Description

This ultra-light Jet-Tronics Double-Valve switches double action pneumatic cylinders. It has a speed control function for gear IN and OUT as well as an "Air-Fail-Safe" function and a manual control possibility.

Datasheet

Supply voltage: 3.5 V - 7.5 V

Current consumption: 100 mA bei 5V

Pressure range: 0 - 10 bar

Dimensions: (L/W/H) 29 x 28 x 29 mm

Weight: 32 g

Connection: Universal connectors for tubes from 2.5 to 4 mm outside diameter

Downloads

Manuale d'uso (209 KB)
