Futaba T16SZ R7008SB 2.4 Ghz

of Futaba
SKU: FUT1016

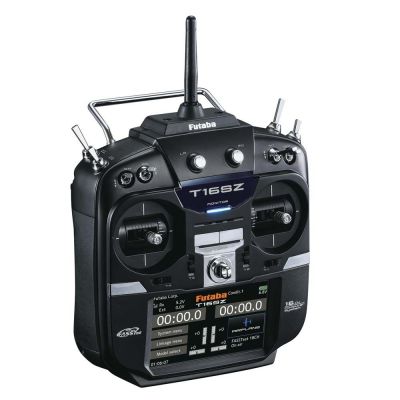

Futaba T16SZ + RX R7008SB 2.4 Ghz
To buy this product contact us at ordini@8fly.it

Description

FASSTEST SYSTEM:

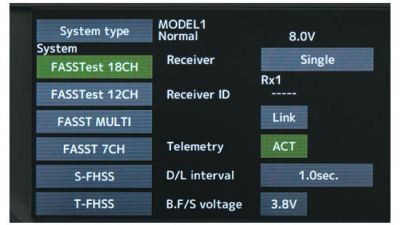

The 16SZ transmitter has adopted the bidirectional communication system “FASSTest”. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels 2.4 GHz dedicated system.

COLOR TOUCH SCREEN LCD:

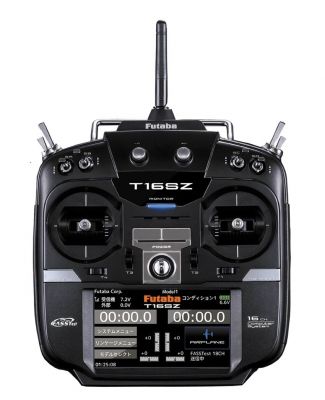

T16SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

MODEL TYPES:
Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.

NIMH BATTERY:
The 16SZ is operated by a 6.0 V/1,800 mAh NiMH battery.

SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED:
Model data can be saved to an SD card (SD: 32MB – 2GB, SDHC: 4GB-32GB). When T16SZ transmitter software files are released, the software can be updated by using an SD card update.

EDIT BUTTON:
Two edit buttons are provided, and the operating screen can be immediately “Returned” to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.

VIBRATION FUNCTION:
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.

SPEECH FUNCTION:
A function is equipped which allows the system to provide telemetry data audibly. This function can also be utilized with commercially available earphones.

Ricevente inclusa

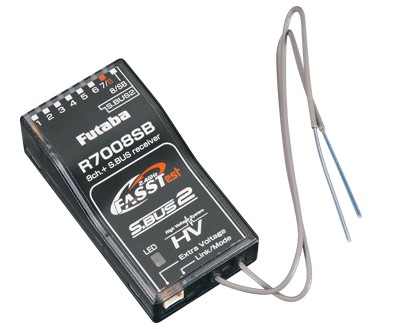

Receiver Included







Datasheet

 Radiocomando Futaba T16SZ R7008SB

Se volete un sistema R/C che possa affrontare qualunque sfida passate alla 16SZ. Compatibile con tutti i popolari protocolli Futaba FASSTest,FASST,S-FHSS. Ha un grande shermo LCD 4,3 " Touch.
La programmazione è facile ed intuitiva per aerei, elicotteri, veleggiatori e droni. Completa di una lussuosa ricevente S-BUS 2 offe la convenienza di 30 modelli in memoria e molto, molto, molto altro.

Specifiche Trasmettitore:

  • 16 proportional channels, 2 switched
  • Compatible with:
    • FASSTest, FASST, S-FHSS and T-FHSS protocols
    • Futaba HV (High-Voltage) receivers
    • All Futaba telemetry sensors
  • Free online software upgrades
  • 4.3" LCD touch screen
  • 30-model memory
  • 15-character user and model naming
  • Sub trims (240 steps)
  • Servo reversing
  • Trim settings (adjustable step, rate & mode)
  • Servo speed adjustment
  • AFR/DR
  • AFR curve mode (3)
  • AFR curve point (17 points)
  • Idle down
  • Logic switch
  • Full flight condition
  • 10 programmable mixes
  • Throttle cut
  • S.Bus servo programming editor
  • High-voltage R7008SB receiver
  • Swash and throttle mixing
  • V-tail mixing
  • End point adjustment
  • Adjustable servo speed
  • 8 flight conditions
  • 3-axis gyro support
  • Micro memory card slot
  • Voice message/audio earphone jack
  • Up/down integral timer (2)
  • Throttle timer
  • Lap timer/memory
  • Battery fail safe
  • Stick calibration
  • Eight toggle switches
  • Two assignable front dials
  • Four assignable trim levers
  • Two assignable side levers
  • 7,4V LiPo 2800 mAh rechargeable battery & Charger
  • Trainer S.Bus port
  • Vibration alert
  • 180° antenna rotation and 90° angle adjustment
  • Multi language (9 languages)

Programmazione aereo:

  • 13 wing types
  • 3 tail types
  • 2 rudder types
  • Flap setting
  • Aileron differential
  • Aileron to camber flap mix
  • Aileron to brake flap mix
  • Aileron to rudder mix
  • Airbrake to elevator mix
  • Rudder to aileron mix
  • Rudder to elevator mix
  • Camber mix
  • Elevator to camber mix
  • Snap roll
  • Airbrake mix
  • V-tail
  • Ailevator
  • Winglet
  • Motor mix
  • Multi-engine
  • Gyro sensor

Programmazione Heli:

  • 8 swash types
  • Pitch/throttle curve
  • Pitch/throttle curve mode (3)
  • 17 point pitch/throttle curve
  • Acceleration
  • Throttle hold
  • Swash mixing
  • Throttle mixing
  • Pitch to needle mixing
  • Pitch to rudder mixing
  • Gyro sensor (3)
  • Governor
  • Condition hold
  • Hovering pitch
  • Hovering throttle
  • Swash AFR
  • Swash setting
  • Swash ring
  • Throttle limiter

Programmazione Veleggiatori:

  • 13 wing types
  • 3 tail types
  • 2 rudder types
  • Flap setting
  • Aileron differential
  • Aileron to camber flap mix
  • Aileron to brake flap mix
  • Aileron to rudder mix
  • Rudder to aileron mix
  • Airbrake to elevator mix
  • Camber mix
  • Elevator to camber mix
  • Camber flap to elevator mix
  • Butterfly mixing
  • Butterfly to elevator
  • Trim mix 1
  • Trim mix 2
  • V-tail
  • Ailevator
  • Winglet
  • Motor mix

Funzioni multicotteri:

  • Gyro

Funzioni Telemetriche

  • Receiver battery
  • Temperature
  • RPM (magnetic and optic)
  • Altitude
  • GPS
  • Voltage
  • Current
  • Servo
  • Voice (English, German, Japanese, French)
  • Data logging



Caratteristiche:

Banda: 2,4GHz

Trasmissione: Futaba FASST, FASSTEST, S-FHSS

Utilizzo radio: Air

Numero Canali: 16

Ricevente (Rx) Inclusa: Si

Numero Memorie: 30

Display: LCD Retroilluminato di grandi dimensioni

Telemetria: Si

Batteria Inclusa: 6V NiMh

Caratteristiche Particolari: Memoria espandibile con Micro Memory Card
