Alewings centralina Double Voltage 5V-7,4V 20+20A LiPo 2S

Alewings centralina Double Voltage 5V-7,4V 20+20A LiPo 2S

Alewings centralina Double Voltage 5V-7,4V 20+20A LiPo 2S

SKU: ALE90010303
Double Voltage 5V-7,4V 20+20A LiPo 2S
Price:
€109.58
Listing:
You Save:
(%)
To buy this product contact us at ordini@8fly.it

Description

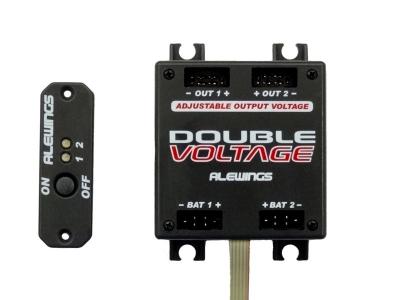

Two batteries power supply unit with two programmable stabilized outputs. It accepts in input two batteries LiPo 2S 7,4V; the voltage of the two independent outputs can be set from 5V to 7,4V. (It is ideal also for applications with HV servos). The voltage is regulated in linear way moving the selector on the device with a screw driver.

It is provided with two voltage regulators, two electronic switchescontrolled by a button and with an external panel featuring two battery status indicators keeping memory of low battery level.

It has been designed for supplying with redundancy receivers with two battery inputs or for supplying with only two batteries receivers, servos and electronic ignition of gas engine.

Moreover it can be used with units managing servos such as MAC16 and UniServo.

The packaging includes the external panel and a 300mm flat cable for connection. Battery inputs and outputs are equipped with MPX connectors.

Datasheet

Alimentazione: LiPo 7,4V / 2 x LiPo 7,4V

Voltaggio Uscita 1: 5 - 7,4V programmabile

Potenza max Uscita 1 :  20 Amp

Voltaggio Uscita 2: 5 - 7,4V programmabile

Potenza max Uscita 2: 20 Amp

Interruttore: A pulsante

Monitor batteria: 2 con effetto memoria

Dimensioni mm: 61x80x23

Peso gr: 75

Temperatura funzionamento: -10? / +60?
