Jeti Central Box CB210 + 2 DR Sat2 + RC Switch

Jeti Central Box CB210 + 2 DR Sat2 + RC Switch
  • Jeti Central Box CB210 + 2 DR Sat2 + RC Switch
  • Jeti Central Box CB210 + 2 DR Sat2 + RC Switch

Jeti Central Box CB210 + 2 DR Sat2 + RC Switch

Codice: JETCB210RSRCSW
Central Box CB210 + 2 DR Sat2 + RC Switch
Prezzo:
€ 344,65
Listino:
Risparmi:
(%)
Per acquistare questo articolo inviaci un'email a ordini@8fly.it

Descrizione

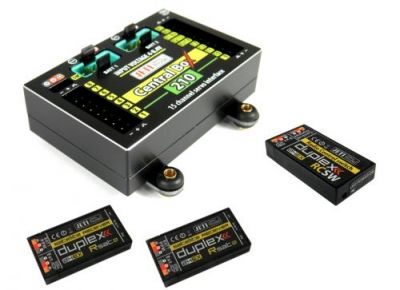

INCLUSI DUE SATELLITI RSat2 + RC SWITCH

The Central Box 210 is a switchboard designed for the complete management of servos in a model. The Central Box can manage two batteries and fully supports the JETI EX telemetry system. Up to three
receivers with serial output can be connected to the Central Box. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry
and DITEX servos telemetry.Central Box 210 supports up to 15 servo outputs, two battery inputs and incorporates possibility to connect an RC or magnetic switch.

Attributes



  • 2 RSat2 2,4GHz Included
  • RCSW Inlcuded
  • Support of DITEX telemetry servos
  • Possibility to connect up to 3 receivers with serial interface (EX-Bus, PPM)
  • Built-in Expander function for up to 3 sensors
  • Input for magnetic switch or RC switch
  • Two MPX battery input connectors
  • 100Hz mode of servo outputs (10ms period)
  • Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, …)
  • Easy settings changes via DC/DS transmitter
  • Firmware updates by user
  • Suitable for use with high voltage (HV) servos
  • Compact size for easy installation
  • Aluminum Case for Extra Cooling and Protection

Scheda Tecnica



Tensione di ingresso consigliato (V) 4-8.4
Numero di batterie 2-3 o 4-10 LiXX NiXX
Corrente continua 20 A
Corrente Pulse 90 A
Prese Servo fino a 15
Consumo di energia in stato OFF con interruttore RC 180 uA
Range di temperatura - 20 ° C fino a + 75 ° C
Peso 30 g
Dimensioni 66x42x18mm
Dimensioni encoder magnetico 30x21x5 mm
