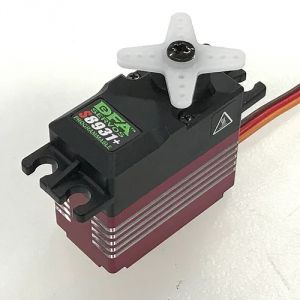

JR/DFA servo digitale S8931+ 36,5kg/cm 0.13s/60°(7,4V)

JR/DFA servo digitale S8931+ 36,5kg/cm 0.13s/60°(7,4V)

JR/DFA servo digitale S8931+ 36,5kg/cm 0.13s/60°(7,4V)

Codice: JR-DFAS8931
JR servo digitale programmabile S8931
Prezzo:
€ 139,00
Listino:
Risparmi:
(%)

Descrizione

DFA is pleased to announce the release of our new XBus programmable servos, allowing not only serial servo connection, but also individual servo programming with servo adjustments to suit every application.

Highlights :
This servos automatically detect the type of output they are plugged into - conventional receiver PWM outputs, or XBus. This means Programmble servos are XBus compatible, and also compatible with PWM receiver signals without any converter, allowing modelers to use conventional receiver systems.
* Compatible receiver systems : DMSS · DSMJ · 72MHz · 40MHz

When used on a DFA JR XBus system, the Programamble servos can be programmed in ways not previously possible. No additional programming device is necessary these servos can be setup using a DFA 8+6 DFA T44 ,JR XG series transmitter.

Changes made to servo programming are immediately apparent. Not only can servo direction and travel be adjusted, but it is now possible to fine tune servo gain, dead band and boost to suit your aircraft and desired response. This precise setup allows servo hunting to be eliminated and precise feel maintained.

· Wide Voltage
· Double ball bearings
* Slow start function

 *Compatible with any radio using PWM control

  XBus compatible allowing

 *120 to 180 deg travel

 * featureYou can adjust Dumping,Hold,Deadband...etc
 * Do not use this servo under the different voltage other than specified
 * If used on a large and Heavy control surface .Try to adjust Dumping.Hold .Dead band.Boost etc...



   You will set it up perfect condition.(use RX Xbus port  and Xbus TX)

Scheda Tecnica



Torque: 23(4.8V)/29.6(6.6V)/36.5(7.4V)kg.cm
Speed: 0.2(4.8V)/0.16(6.6V)/0.13(7.4V)Sec/60°
Weight: 72g
Dimensions: 35.0mm x 21.0mm x 40.5mm
Wire Length: 300mm
Voltage Range: 4.5V - 8.5V
Type: Wide Voltage Programmable Servo
Bearing: Double ball bearings
Gears: Metal
Case: Heatsink Case
MPU: 32Bit
Control Frequency: 1KHz (XBus 1KHz/PWM 333Hz)
Neutral: 1500μSec
