Light version, for installations where space is reduced. Includes color screen (removable) and miniature connecting hub.
Power: 45N - 10lb
Extremely low residual thrust: 1,8N -0,4lb
Exceptional idle to full thrust ratio of 25 times.
Max RPM: 225.000
Minimum RPM: 60.000
Diameter: 59,8 mm
Lenght: 165 mm
Engine weight: 395 g including mounting strap and FOD filter.
Installed weight: 470 g (inc Engine, Pump and leads. Not inclusive of battery.)
Fuel Comsumption: 20 g/min at idle. 145 g/min at full power.
Easily adjustable thrust output in Newton and in Lb from 1,8N to 45N.
Kerosene and diesel fuel + 4% oil
Kerostart fast starting of 25 sec
Inflight Restart technology. Typically half time than Normal Start.
Brushless fuel pump with integrated controller
High speed Brushless starter motor
All new Fully Integrated ecu
Telemetry for Jeti, Futaba, HoTT, MPX, PB Core, Spektrum, JR and FrSky. (Optional module)
Fuel and FOD filters included.
Warranty: 2 years or 25h, wichever comes first. Warranty includes parts & labor, but does not include shipments back to factory in Spain and return.

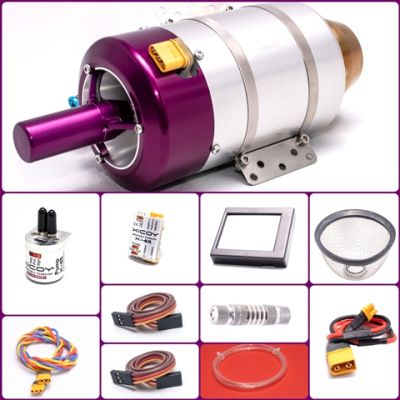

Ideal for small jets where space is a premium. Includes engine, pump, fuel filter, cables, miniature connecting hub, plus an color touchpannel terminal that can be disconnected and kept in the pocket for normal operation
