Topmodel Discus 2c De-luxe 4,5mt

Topmodel Discus 2c De-luxe 4,5mt

Topmodel Discus 2c De-luxe 4,5mt

of Topmodel Cz
SKU: TM02057DL
Discus 2c De-luxe 4,5mt.
To buy this product contact us at ordini@8fly.it

Description

Product information:Class glider designed to 1:4 scale. Wingspan 4,5mt.

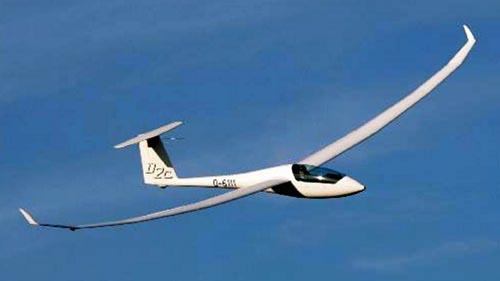

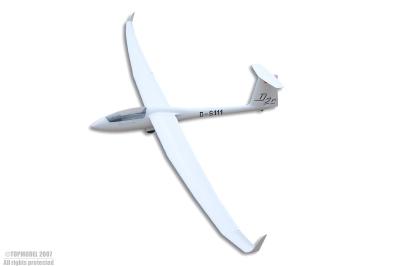

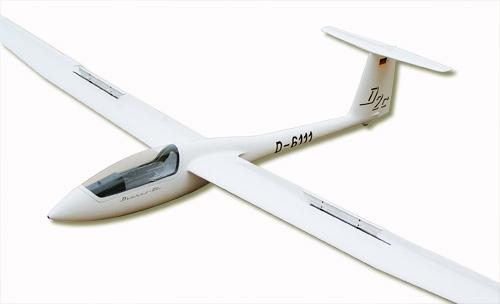

Very precise quarter scale of the latest Schempp-Hirth sailplane, the DISCUS 2c.
Amazing machine, wonderfully built, nearly ready to fly, only 3-5 hours work is necessary to complete her.

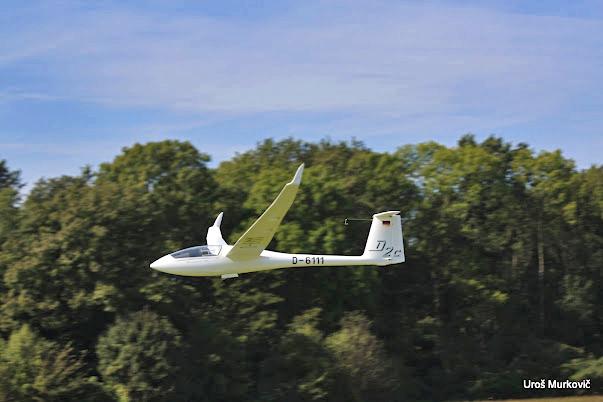

Flight looks like the real one.

A real winner!



The model is designed and manufactured in Czech Republic. Spare parts are in stock.

Datasheet

Technical specification:




4500 mm


1610 mm


4,9-5,4 kg


76,5 dm2


64-70,6 g/dm2


HQ 3/14-2/12


A-P-D-AF-TR-CR

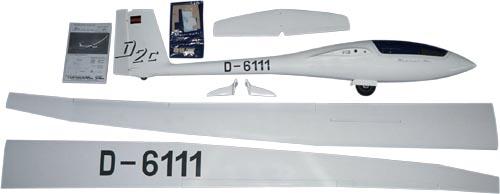

The de luxe ARF kit contents:

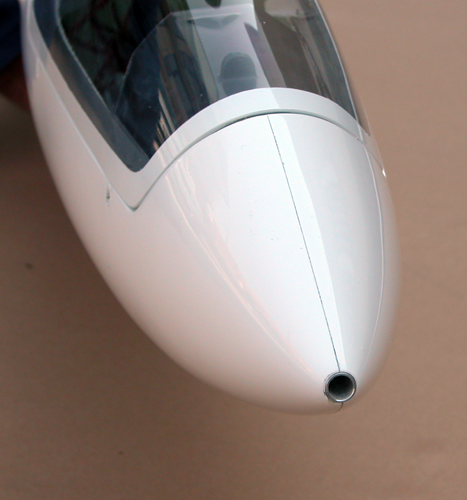

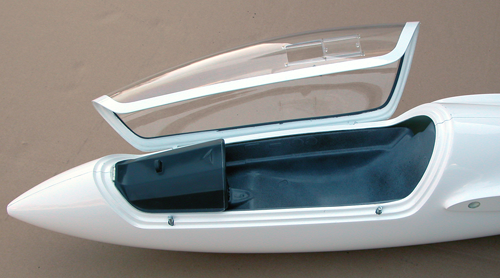

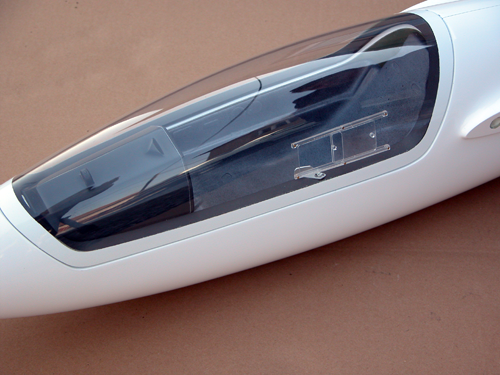

  • Ready fiberglass fuselage with already installed sliding cabin, fiberglass seat and dashboard panel.

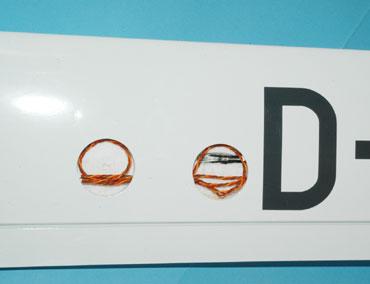

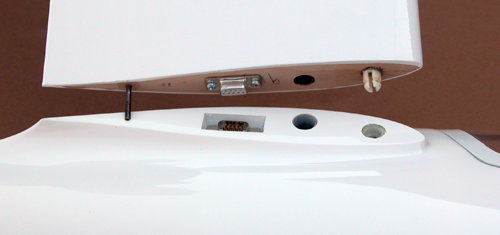

  • Special 9 pins connectors with wires already installed at the wing saddle and wing fixing device also installed (cf photos).

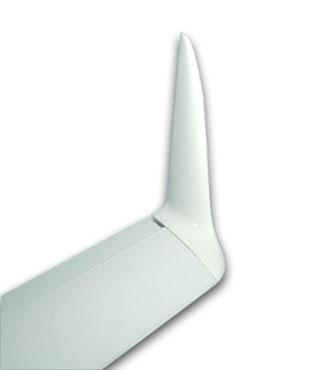

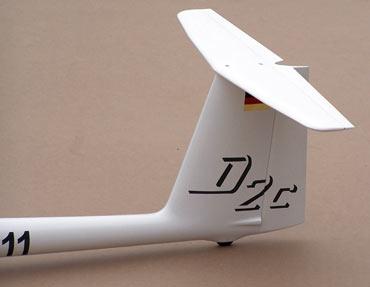

  • Fiberglass hollow moulded winglets, horizontal stabiliser and fin.

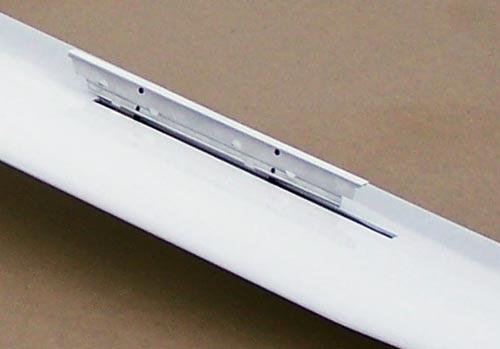

  • Ready foam core abachi wings covered with Oracover® with metallic airbrakes already installed. Wing fixing device already installed and servos connector also (requires 2 servo by wing, 1 for ailerons (2 parts), coupled mechanically, 1 for the airbrake).
  • All is made, need only to mount the radio gear! (maxi 3-5 hours work)

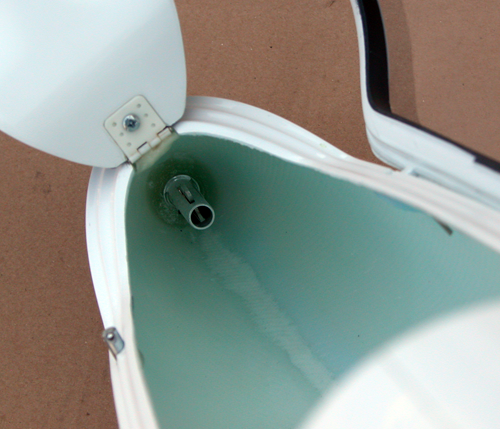

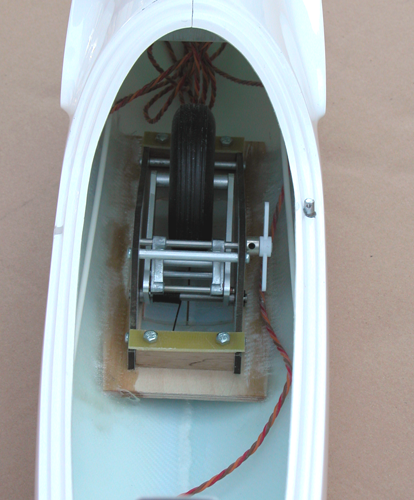

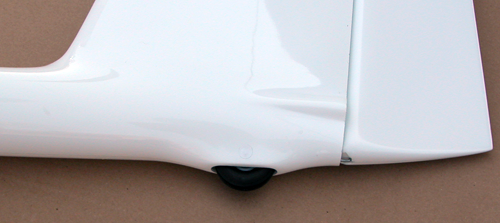

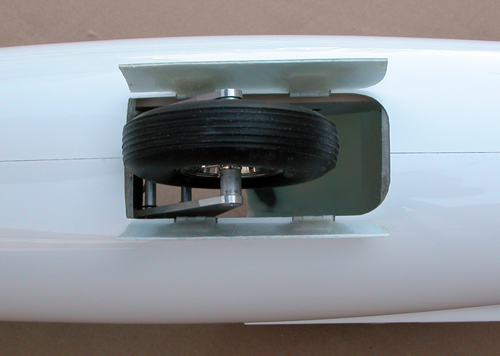

  • De luxe version is delivered as you see with retract gear (bay doors installed), tailwheel and tow hook already installed; standard version without.

Extra high quality product, setting a very new high quality standard in this category!


Controls:

Ailerons (2 micro servos)
elevator (1 micro servo)
rudder (1 servo STD)
airbrakes (2 micro servos)
retract gear (1 servo STD)
tow hook (1 servo STD)
