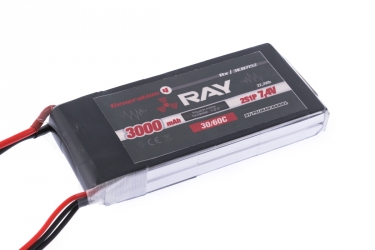

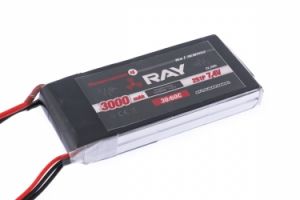

RAY G4 lipo 3000mAh 7.4V 30C RX

RAY G4 lipo 3000mAh 7.4V 30C RX

RAY G4 lipo 3000mAh 7.4V 30C RX

of RAY
3000mAh 7.4V 30C RX Lipo Battery Pack
You Save:


The fourth generation of RAY batteries retains the advantages of popular second-generation sets: a 30C discharging current, a fast 2C charging capability, a 350-3250 mAh capacity range that reliably covers recreational modeling needs and excellent long-term service life.

RAY G4 Lithium Polymeric Batteries with a current rating of up to 30C are designed for common applications in recreational and sporting aircraft models for both classic and 3D acrobatics. The high current load capacity ensures maximum utilization of the engine power and allows a fairly robust flying style while maintaining a very good long-term service life.

Do not charge RAY G4 accumulators with a current greater than 2C, we recommend using currents in the range of 1-2C for normal operation. We recommend using balancer every time you charge. RAY G4 batteries do not require initial molding, but if you want to charge the kits with a current greater than 1C, we recommend that you do not exceed 1C for the first three charging cycles. There is no need to discharge it before charging - for example, you can safely charge 50% discharged batteries.

The kit is supplied in the "Rx Pack" design for the onboard RC equipment. It features silicone power cables with 2 mm gold-plated connectors for charging or powering on-board systems with higher current consumption. There are two two-wire cables with JR / Hitec servo connectors to power the receiver - you can easily implement dual power lines with two parasitic switches. The service connector is a standard JST-EH system.


Capacity [mAh] 3000
Voltage [V] 7.4
Charging current [A] 3 - 6
Max. charging current [A] 6
Discharge current [A] 15
Max." discharging current [A]  30
Energy [Wh] 12.2
Length [mm] 96
Width [mm] 44
Height [mm] 14
Weight [g] 125
