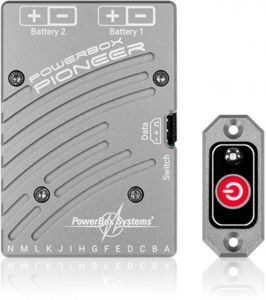

PowerBox Pioneer

PowerBox Pioneer

PowerBox Pioneer

of PowerBox Systems
SKU: PBX4100
PowerBox Pioneer + microswitch
Price:
€199.00
Listing:
You Save:
(%)
To buy this product contact us at ordini@8fly.it

Description

The PowerBox Pioneer is the latest development of a 14-channel power supply unit without voltage regulation, designed for HV servos.

Features

  • 14 channels
  • High-performance battery backer with high continuous load capacity
  • Duplicated circuitry for the entire power electronics
  • Redundant electronic switch
  • All features can be controlled using PowerBox and Jeti transmitters
  • All systems can be operated using BlueCom or PowerBox USB
  • Integrated iGyro technology of the latest type, with iGyro SAT as gyro sensor
  • Nine independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
  • Special regulatory algorithm for fixed-wing models
  • Detects all transmitter mixers
  • Ultra-simple gyro programming in just a few minutes
  • Optional GPS mode for speed-dependent gyro compensation
  • Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS and Spektrum SRXL2
  • Transmission of voltage, current, capacity, lost frames and holds
  • User-variable servo frame rate: 10 ms, 12 ms, 14 ms, 16 ms, 18 ms
  • Suppression of servo feedback currents
  • Ultra-modern 32-bit microprocessor ensures swift, accurate signal processing
  • Efficient heat dissipation via the high-quality machined and anodised aluminium case
  • Machined and anodised aluminium switch housing
  • Space-saving low-profile format
  • Ultra-lightweight construction

Datasheet

Operating voltage 4.0 V - 9.0 V
Power supply 2s LiPo, 2s Lilon, 2s LiFePo, 5s NiMH
Current drain Power-on state 105 mA
Current drain Standby 30 µA
Maximum load current Continuous 2x10 A (<30 s 2x 20 A)
Drop-out voltage 0.3 V
Output voltage unregulated
Signal input serial
