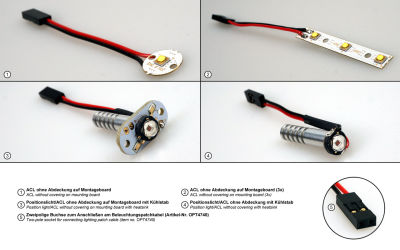

Completely readymade lighting module composed of a SEOUL 3 watt emitter respectively of one or three 5 watt emitter. Suitable for flashing as ACL or with heatsink for permanent operation as position light.
PLUG & SHINE! connections
For installing the position light/ACL no soldering is necessary.
The position light/ACL is fully wired with approx. 6cm (2.36in) connection cable and two-pole socket. It can be plugged to the enclosed lighting voltage regulator then it can be connected to a light control unit (e. g. Optotronix Aurora LCU EVO2, item no. OPT2000) with the optional available lighting patch cable (item no. OPT4740).
With the optional available lighting distribution board (item no. OPT7020) up to three positionlights/ACLs or e. g. landing lights can be operated on one lighting channel.
Connection and wiring hints
All PLUG & SHINE! lighting modules can be plugged to the MPX connector with pin strip, plug & socket (item no. A85400) or the Wing connector 8pin with pin strip, plug & socket (item no. A85405). See also tab Accessories etc.

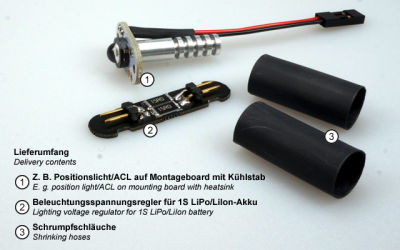

- Position light/ACL without covering according to variant selection
- Lighting voltage regulator for 1S LiPo/LiIon battery
- Shrinking hose for cable fixing
