Attention: LED is very bright, don't look into the cone of light from closer distance. Never focus the bright LED to the eyes of a human or an animal.

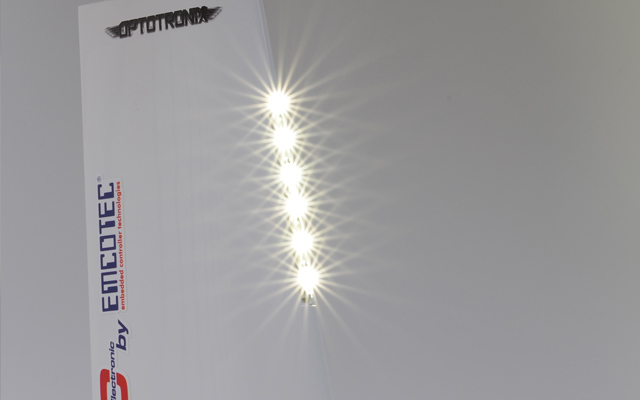

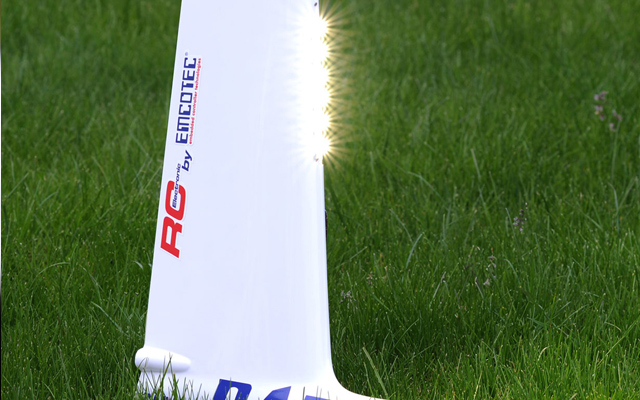

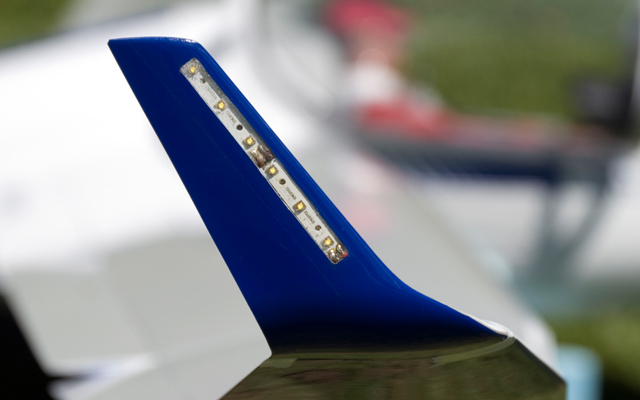

Anti collision light (ACL) consisting of ultra bright LEDs, among others designed for glider planes. Perfectly suitable for mounting into the vertical tail or the winglets. Easy operating with flash electronic (e. g. Optotronix Aurora LCU, available optionally, item no. OPT2000). Due to the extremly bright LEDs good visibility even in high altitudes at sunny weather.
If more brightness is desired two Glider ACL can be mounted in a row.
We recommend using the Universal ACL only in flash operation mode. When operating with Aurora LCU only the functions 1 to 21, when operating with Firefly LCU only the functions 1 to 9 can be used. Further information concerning flash functions see page 10 of LCU's manuals.
Attention: Please finish the programming procedure before connecting the Glider ACL. If the Glider ACL accidentally is connected to a channel which uses permanent light as default the Glider ACL can be damaged or destroyed even when only operated temporary.
Before using a suitable resistor must be soldered. Find an overview of suitable resistors within the section Specifications.
Glider ACL - Specifications

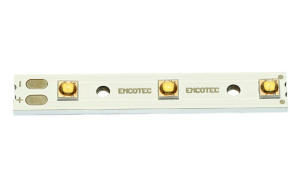

Single PCB Glider ACL
|R at 1S LiPo||no resistor||0R57||no resistor|
|R at 4.8V NiMH||0R33||1R9||0R47|
|R at LiPo||0R82||2R2||1R8|
|R at 2S LiFePO4||0R68||3R9||1R5|
Two Glider ACL PCBs in a row
|R at 1S LiPo||not possible||not possible||not possible|
|R at 4.8V NiMH||not possible||not possible||not possible|
|R at 2S LiPo||no resistor||0R47||no resistor|
|R at 2S LiFePO4||not possible||not possible||not possible|
|Voltage range||2.7V ... 3.45V||2.3V ... 2.5V||3.3V ... 3.8V|
|Angle of radiation||125°||123°||128°|
|Dimensions||46.2 x 7.2 x 3.6mm (1.82 x 2.83 x 0.14in)|
|Connection||Soldering pads for cables|
