The original improved and made unique! Made in Germany!

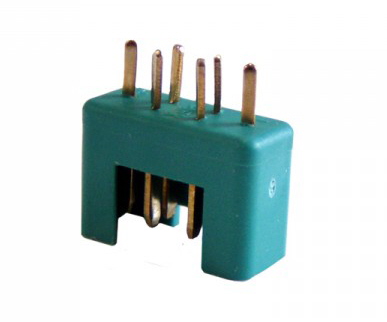

From now on the popular MPX plug for currents up to 50 amperes can be used permanently. For a short time even up to 100 amperes may flow, with 2x3 pole connection.
The special features such as reverse polarity protection, versatility, compact design have been supplemented by the UL94 V-0 fire protection class.
This makes the plug the perfect connection, e.g. for drive battery and controller or drives, or for other plug connections.
The contacts are made of a copper alloy, which is additionally nickel-plated before gold-plating.
An essential feature of this original are the contacts, which are freely stored in the plastic.
The pins are individually twisted, so that when plugged together with the MPX socket, the contacts can find each other in the best possible way and a reliable connection is guaranteed.
This results in the lowest possible contact resistance and extremely many mating cycles are possible.
The new plugs are compatible with the old sockets, but attention must be paid to the low current carrying capacity of the socket.
HIGH CURRENT CONNECTION with:
- Gold-plated contacts
- Contact resistance under 0.001 Ohm
- High current resistant up to 50 A
- Reverse polarity protected
