Was used same platform in the big brother 33% . This airplane was develop for the 50-60 cc gas and the 4-5kW electric engines too. Model is for all diehards and sport pilots, flying either scale aerobatics or 3D.
You can see some of nice and practical poins concerning build airplane :

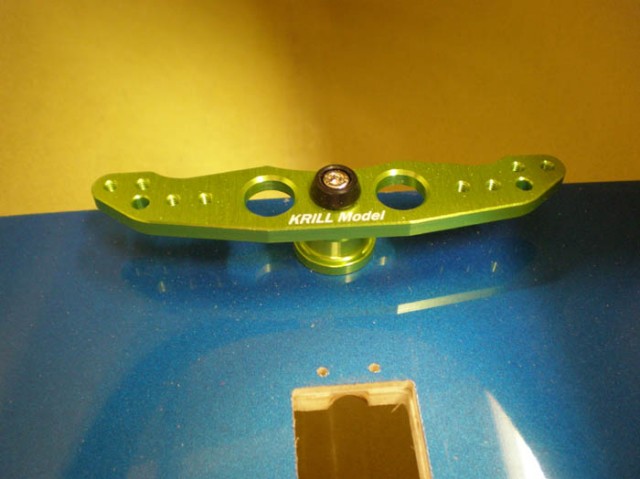

· integrated composite formers and ribs + Secraft rudder arms instaled :
· Canopy opening is much larger for easy access and installation.

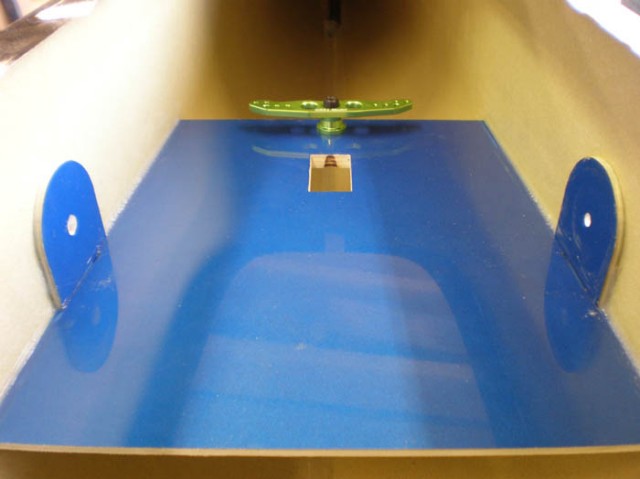

· Integrated composite tray for Rx, batteries, rudder servos,etc.
· All composite landing gear plate, integrated into fuselage.

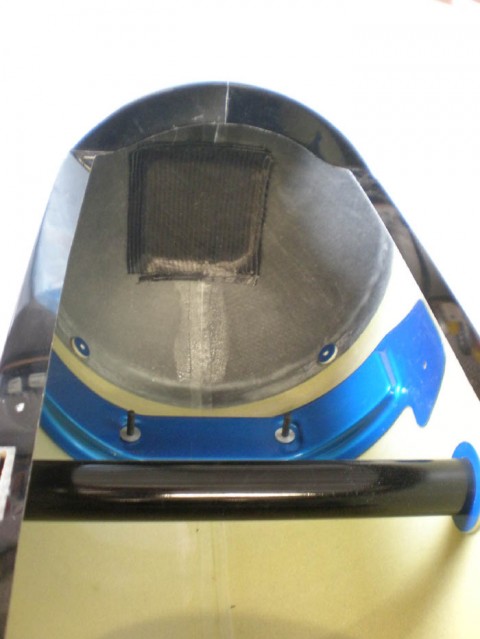

· Carbon fiber firewall.

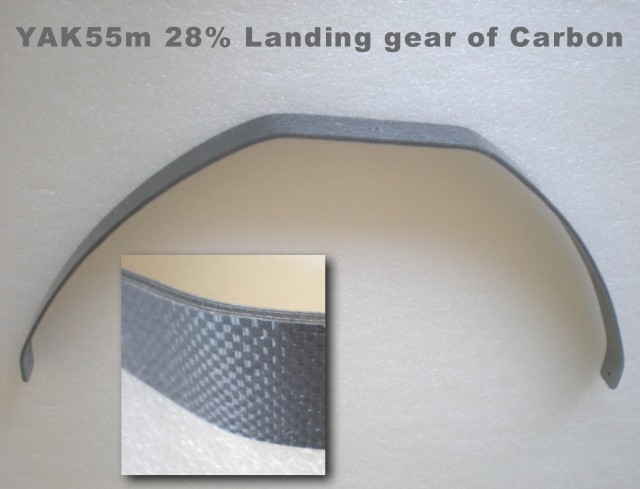

· C/F wing tube and stab tubes + C/F landing gear
Recomendation Accessories :
ELECTRO power : HACKER A80 / 10 + MasterSpin Opto 180A + prop 2bl. 24x10 + 10 cell 4500mA FuelPower.
GAS power : DA60 , DLE55 + KS muffler set + 500ml fuel tank
- 2x .......... JR DS8915 - stabilizators
- 2x .......... JR DS8915 - ailerons

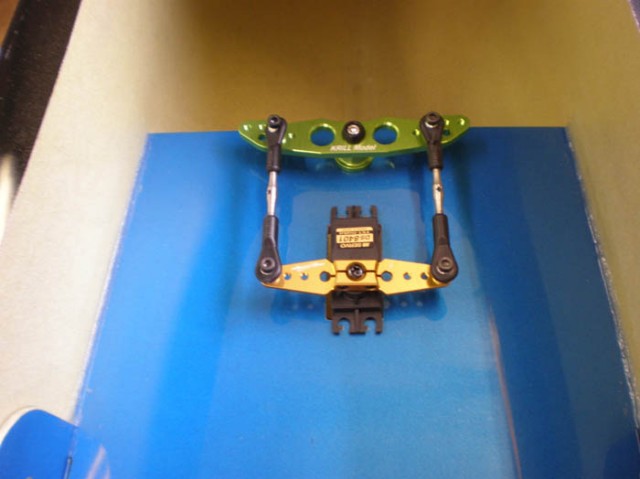

- 1x ...........JR DS8915 - rudder
And this is what has been done for you:
1- wings, elevators and rudder are installed
2- pre drilled the rudder hinges
3- clear canopy is glued into frame.
4- Cowl installed, using 4 x M5 bolts.
5- Landing gear is pre drilled
6- All control horns openings are pre cut for our CNC
7- sign points on the fuselage for rudder wires
Total weight the kit include hardware is 3,8 Kg.
There a line of accessories available for this airplane, such as spinner, wing covers, wheels,etc.All of them are listed on order form.
Included in the kit:
Composite parts- fuselage with integrated formers, wings, elevators, rudder, cowl, canopy, wheel pants , landing gear

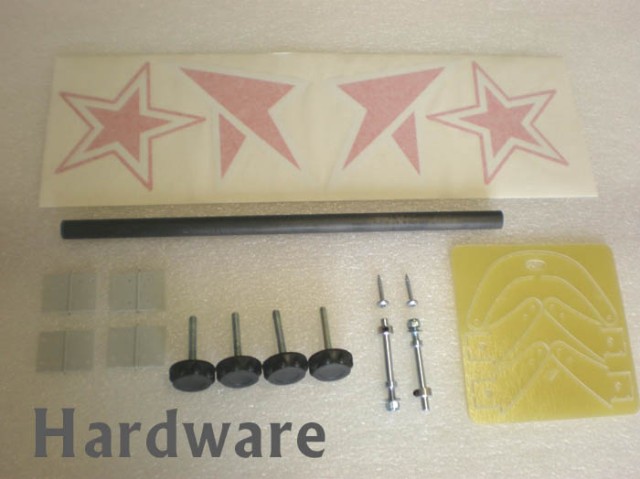

No composite parts - wheel axles, bolts, control horns.

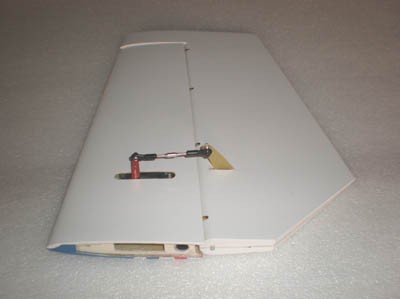

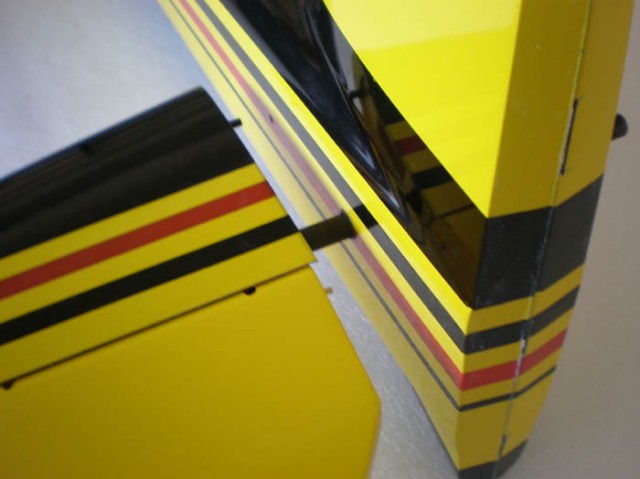

- Foto elevatore (13 KB)
- Foto carrello (51 KB)

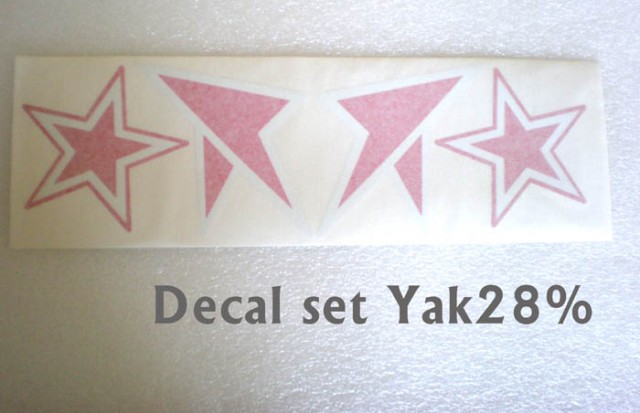

- Foto decals (52 KB)

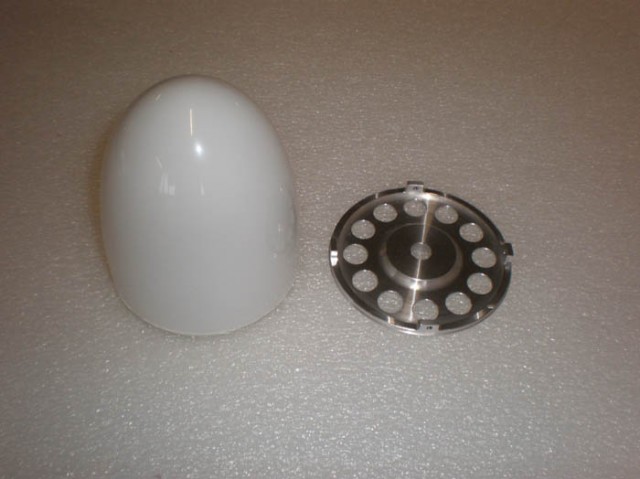

- Foto ogiva (52 KB)

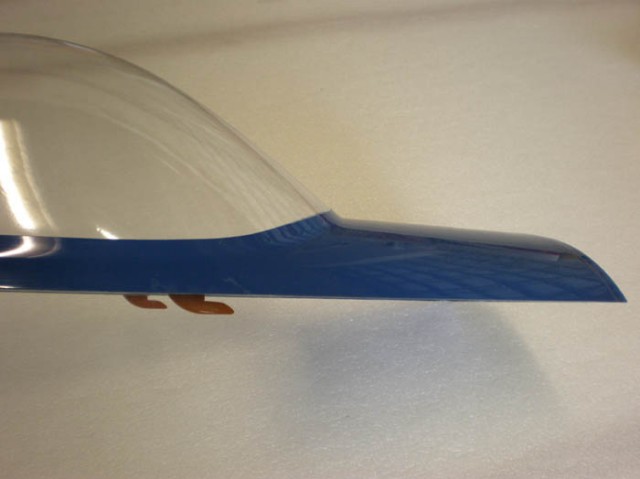

- Foto cappottina (37 KB)
- Foto hardware (51 KB)
- Foto elevatore prof (51 KB)
- Foto piastra servo (43 KB)
- Piastra carrello (48 KB)

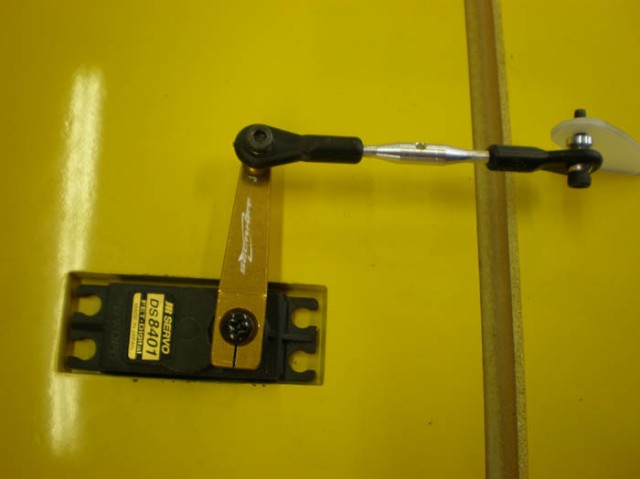

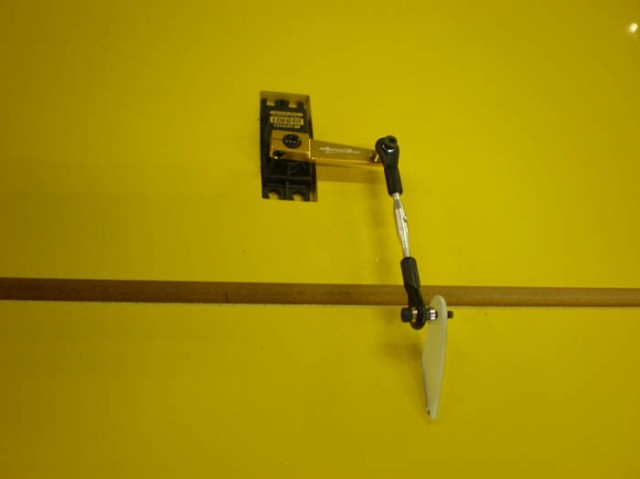

- Servo ala (24 KB)
- Squadretta timone (51 KB)

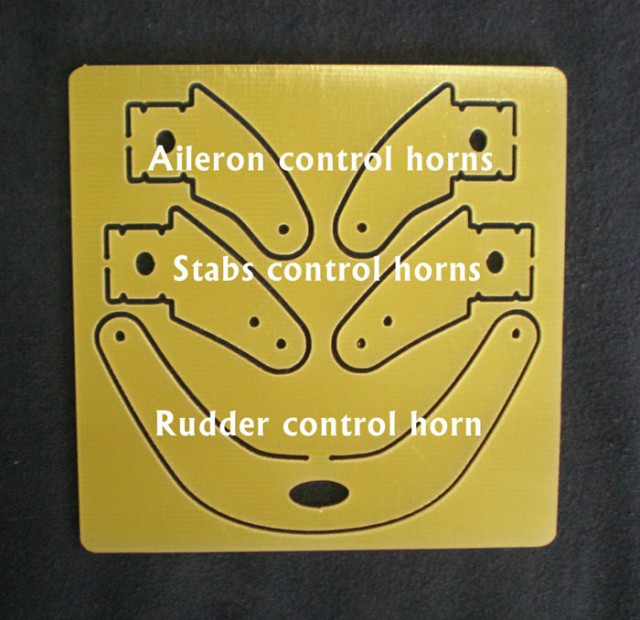

- Squadrette (87 KB)
- Servo deriva (45 KB)

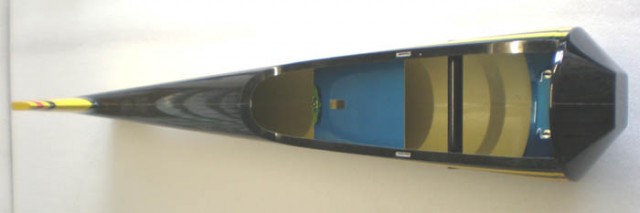

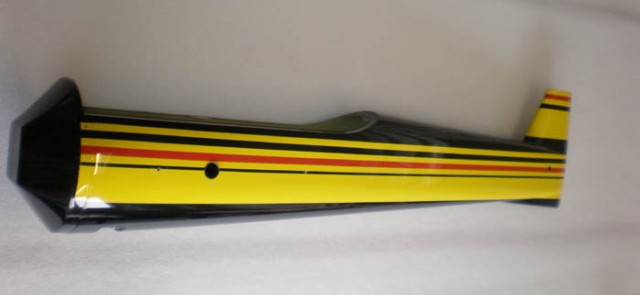

- Fusoliera (18 KB)

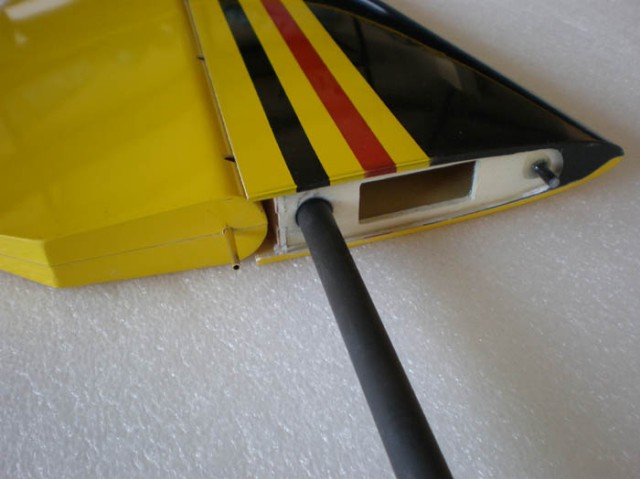

- Baionetta elevatore (49 KB)
- Comando leva (34 KB)
- Fusoliera prof (26 KB)

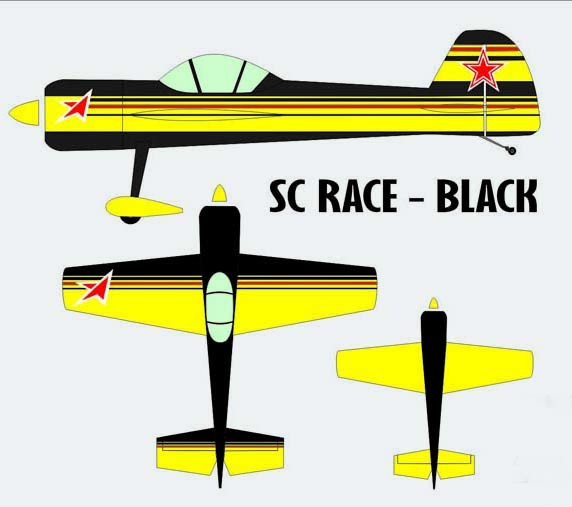

- SC-race black scheme (42 KB)

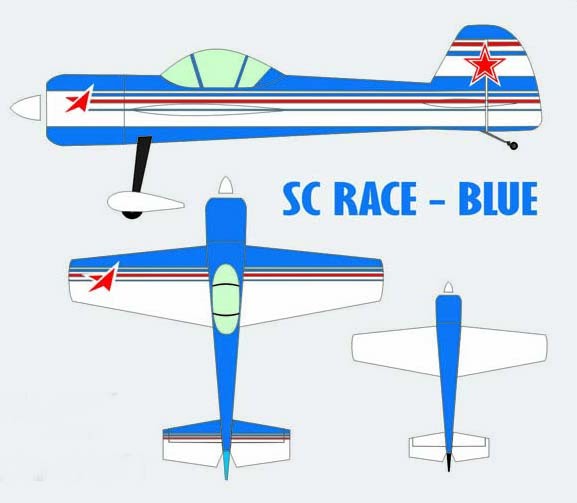

- SC-race blu scheme (39 KB)
