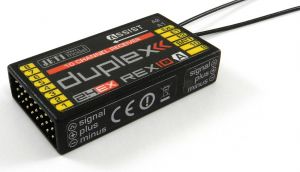

Jeti RX Duplex REX10

Jeti RX Duplex REX10

Jeti RX Duplex REX10

SKU: JETJDEXRR10A
Jeti RX Duplex REX10
To buy this product contact us at ordini@8fly.it

Description

Programmable duplex 2.4EX ReX10 receiver 2.4GHz:

  • bi-directional communication with the transmitter
  • Transfer of the telemetry data to the transmitter
  • Receiver supply voltage indication at the transmitter, and adjustable value for triggering an alarm
  • a plurality of receivers is possible at a transmitter, receivable up to a total of 16 channels
  • adjustable Failsafe
  • Servo channels freely assignable
  • Servo travels, center position and duration adjustable
  • free mixers allocation of channels
  • Expo the channels can be set
  • Activation within a quarter second after switching
  • Connections for sensors
  • programmable with the JETI Box directly or wireless via transmitter

DUPLEX EX is the successor of the well known and proven Jeti DUPLEX system and , of course, fully compatible with the previous components . The EX Series provides a significant extension of the possibilities for the transmission of telemetry data, in conjunction with the PROFI BOX or the Jeti transmitters in conjunction with the program package Flight Monitor receive user-friendly design a better overview of the operational status of your model, facilitating the setting of the system components and the way an easier processing, imaging and analysis capability of the (recorded) flight data

Datasheet

Techn. Data:



Dimensions
51x28x11mm
mass
18g
antenna length
2x 200mm
Outputs
10
temperature range
-10 to 85 ° C
input voltage
3.2 - 8.4V
Average power consumption
30 mA
real-time telemetry transmission
Yes
programming
JETIBOX
satellite receiver
Yes
transmission power
15 dBm
receive Sensitivity
-106 dBm
Number EXT inputs to 3
