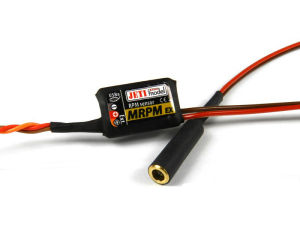

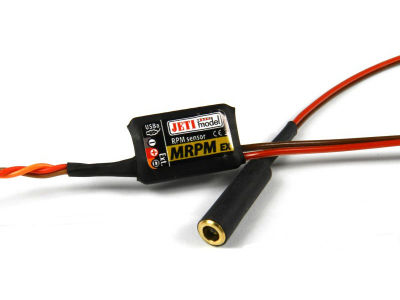

MRPM EX module is designed to measure the RPM of all types of engines. The measurement is performed by using optical sensor. Module MRPM measures actual rotation and actual power of the propeller. The max speed and the max propeller output power are recorded as well. For display of measured values JETIBOX terminal is used, with the possibility of wireless transmission of information in real time using the DUPLEX 2,4 GHz system.
|Dimensions [mm]||19 x 14 x 4|
|Operational temperature [°C]||-10 ... 85|
|Supply Voltage [V]||3,5 - 8,4|
|Average Current [mA]||10|
- Instructions (340 KB)
