The MFlow is a telemetry sensor that measures the flow of the pumped fuel and calculates its amount in the tank. There are two versions of the sensor available. The MFlow-Gasoline is a variant for the models powered by glow or gasoline motors.
The sensor is compatible with Duplex EX system.
EX telemetry values: actual flow and the amount of the fuel in the tank.
User adjustable parameters, such as tank capacity, depleted fuel alarm, etc.

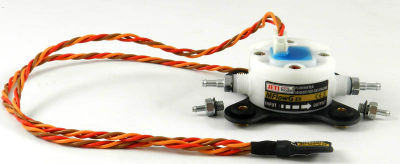

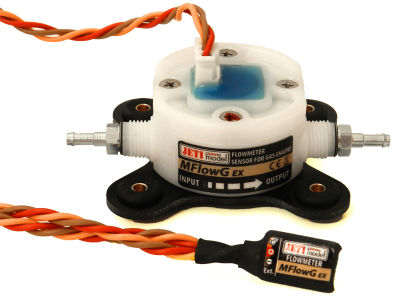

MFlow consists of the flow sensor and the base. The sensor is connected to the base via a cable with a lock connector. The other cable labeled as „Ext“ is used for the DUPLEX system or the JETIBOX. The flow sensor is fitted with these endings according to the type:
MFlow G: 2x barbed fittings for tubes with the internal diameter of 2 mm a 2x barbed fittings for tubes with the internal diameter of 3 m
- Instructions (918 KB)
