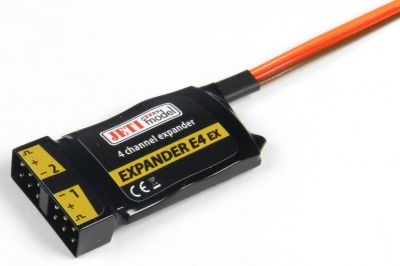

The EXPANDER E4 EX module is used to expand the number of connecting slots for further telemetric sensors. In this way it becomes possible to connect up to 4 sensors to a DUPLEX receiver. The expander can be set in a way which enables the JETIBOX to show several measured values simultaneously.
|Dimensions [mm]||36 x 20 x 5|
|Operational temperature [°C]||-10 ... 85|
|Supply Voltage [V]||3,2 - 8,4|
|Average Current [mA]||8|
- Instructions (148 KB)
