Description
Versatile plugging system for self crimping. Polarity protected and lockable plugs and sockets e. g. for wiring of up to six servos.
The pins can be assigned freely, combinations of e. g. wing servos, lighting modules or smoke pumps are possible. With the two pin variant for example battery cables can be equipped with a secure plugging connection.
The plugs and sockets must be crimped by the customer. Therefor we recommend the crimp tool from our assortment (see tab Accessories). Readymade complete solution can be offered on request.

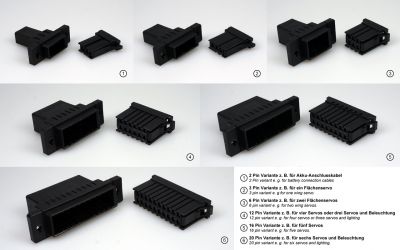

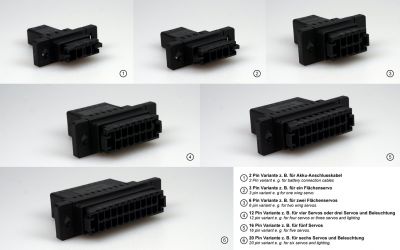

Variant description and examples
- 2 Pin variant e. g. for battery connection cables
- 3 pin variant e. g for a single wing servo
- 6 pin variant e. g. for two wing servos.
- 12 pin variant e. g. for four servos or three servos and lighting
- 16 pin variant e. g. for five servos
- 20 pin variant e. g. for six servos and lighting
The plug and socket housings are shipped optionally with contact pins for AWG24 to AWG20 or for AWG20 to AWG16 cables.
Delivery contents: 1 plug housing, 1 socket housing, contact pins for plug and socket housings according to pin variant.
