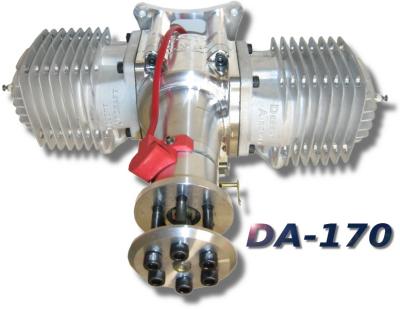

Desert Aircraft DA 170

Desert Aircraft DA 170
Price:
€2,048.37
Product is not on saleordini@8fly.it

Description

Specifications

Displacement: 10.48 ci (171.8 cc)
Output: 18 hp
Weight: 7.62 lbs (3.46 kilos)
Bore: 2.0472 in (52 mm)
Stroke: 1.594 in (40.49 mm)
Length: 7.67 in (195 mm)
RPM Range: 1,000 to 6,500 RPM Max: 9,200
Fuel Consumption: 4 oz/min @ 6,000 RPM

Recommended Props:

2-Blades 32x12 32x10
3-Blades 29x12n 28.5x12

2 Years Guarantee*

Datasheet

  • Same lenght and mounting as the DA-150.
  • Aerobatic power curve.
  • Fast throttle response.
  • Most torque in its class.
  • Low vibration.
  • Exclusive Desert Aircraft designed cylinders, pistons, and crankshaft.
  • CNC milled, 7075 aluminum alloy crankcase.
  • Three crank bearings, long spacing between front bearings.
  • Long conrod with gudgeon pin located very near to piston crown to reduce side loads.
  • Walbro Carburator
  • Four petal reed valve, bottom induction.
  • Electronic ignition with auto advance and retard.
  • DA engines are designed using the latest tools and techniques,including 3D CAD and Stereo Lithography.
