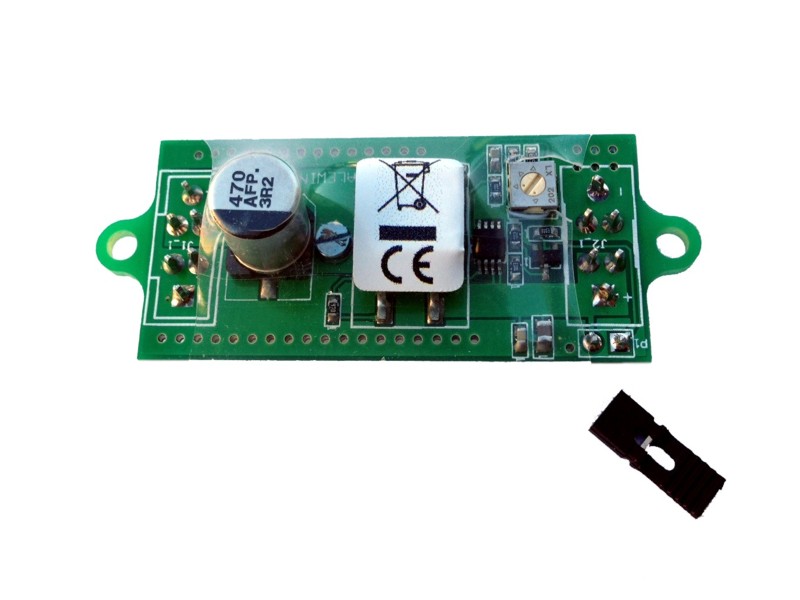

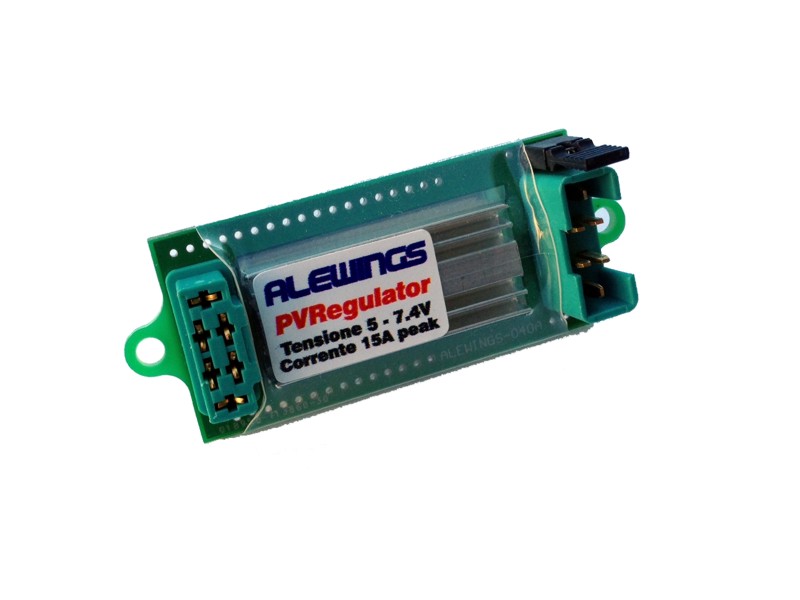

Linear voltage regulator with programmable output (from 5 to 7,4V) and peak current up to 15A. The new line of voltage regulators, named “PV Regulator”, is the natural evolution of previous 6A and 12A voltage regulators with the aim of better performance and functionality. New PVRegulator 15A presents these improved features compared to previous “Voltage Regulator 6A”: higher peak current, lower dropout voltage, lower weight, programmable output voltage from 5V to 7,4V and it is also equipped with an integrated electronic switch to power on and off receiver, servos or other devices connected to the output. PV Regulator is ideal for regulating the voltage of receiver, servos or other devices such as gyros, electronic engine ignitions and light boxes.
A steady and safe supply voltage allows servos and other devices to work always at the best. You can regulate the output voltage in a linear way from 5 to 7,4V moving a trimmer with a small screwdriver.
Powering on and off is done plugging the jumper into the pins on the device.
You can use PVRegulator 15A with 5-6 cells Nixx, 2 cell LiFe or 2 cells LiPoli batteries.
It comes with jumper and original MPX connectors (six poles) both for input and output. Weight is only 14g.
- Maximum output peak current 15A
- Output voltage adjustable from 5 to 7,4V
- Equipped with electronic switch
- Dimension 50x23x22mm
- Weight 14g connectors included
