Alewings Electronic Switch SRC 10A

SKU: ALE90040212

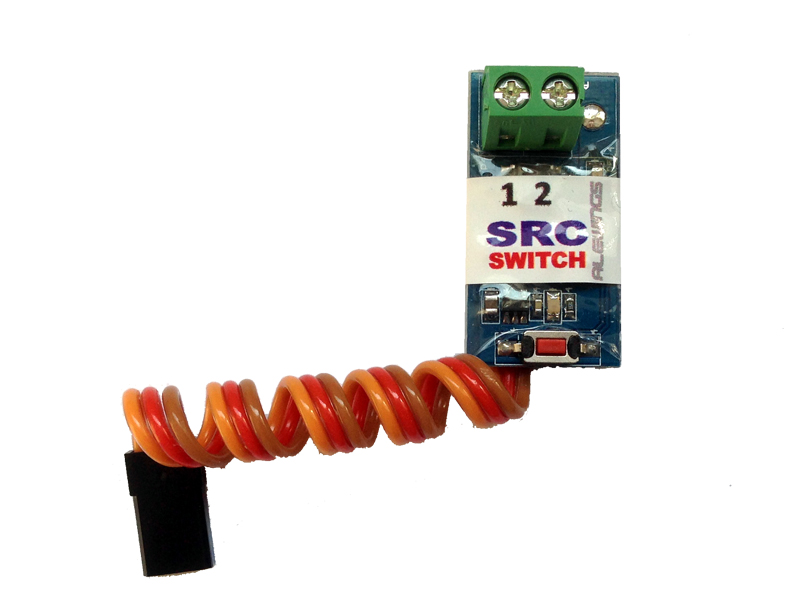

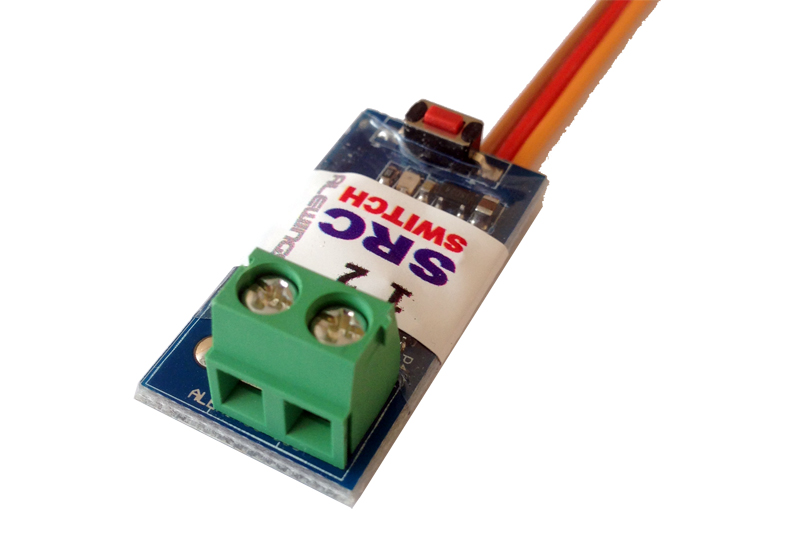

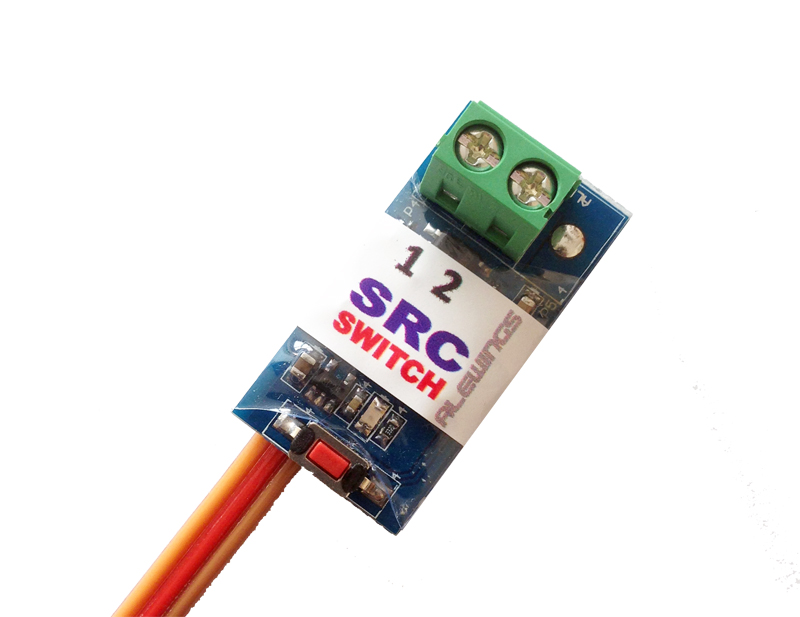

Electronic Switch SRC 10A
Price:
€26.00
Listing:
You Save:
(%)
Product is out of stock

Description

The SRC is a programmable electronic switch controlled by the receiver. You can use it to power on or off any device only moving a stick, slide or switch on your transmitter. It is ideal for supplying high power loads; thanks to a high current connector you can control the switching on of glow plugs, electric motors, smoke pumps, light systems with a maximum drain of 10A. It doesn't need any setting, you have only to connect it to the receiver and it is yet ready for using with a two positions switch of your transmitter. It is possible to adapt it to your needs setting a different switching point, the normal or reversed modality and the fail safe function when signal is lost.

Datasheet



- Operating voltage: 5.2V - 8.4V

- Current drain: 10mA

- Switch with not stabilized output up to 10A

- Programmable switching point and reverse mode

- Programmable Fail Safe for loss of signal

- Dimensions: 34x17x13mm

- Weight: 8gr
