8W Universal & Round Light
Red 8W point light with two transparent polycarbonate caps (10mm and 24mm). The module is delivered completely wired-up on an aluminium retaining plate for cooling and mounting. Another small heatsink for an alternative mounting with the smallest dimensions is included. In case of longer operation, please pay particular attention to the temperatures. With the 8W module, we recommend the usage of a cooling plate AND heatsink.

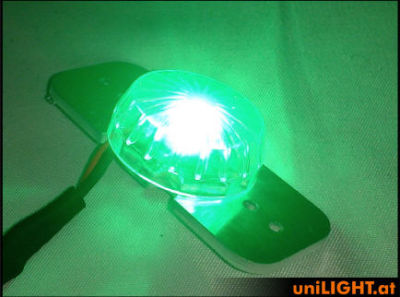

You only have to glue on the desired cap and heatsink with superglue. The 10mm cap serves as light distribution concerning the concealed installation behind a GFK wall. The 24mm cap can be used for external installation for it completely covers the module. The accessory includes a profile expansion in polycarbonate, which can be optionally glued on the 10mm cap.
Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. Continuous operation with the provided cooling elements is possible when paying attention to a slight air flow. Please check operation temperatures after installation.
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
Electricity: 8W reference power, 8(12)V, 0.7A
Beam angle: >160°
Light intensity: ~80 Lumen RED
Light intensity: ~140 Lumen GREEN
Light intensity: ~200 Lumen WHITE
Dimension base plate: 20x50mm
Dimension additional heatsink: 15x15x6mm, self-adhesive
Small cap: D10x12mm + profile expansion
Big cap: D24x10mm
Weight: 8g (without cable)
Delivery: ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed
