UniLIGHT Centralina di controllo Luci 8 canali PRO

UniLIGHT Centralina di controllo Luci 8 canali PRO

UniLIGHT Centralina di controllo Luci 8 canali PRO

Codice: ULMODUL83001
Centralina controllo Luci
Prezzo:
€ 76,15
Listino:
Risparmi:
(%)
Per acquistare questo articolo inviaci un'email a ordini@8fly.it

Descrizione

The system for all tasks!

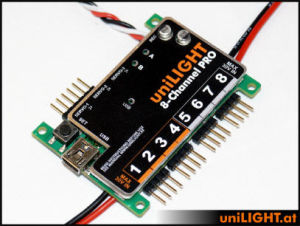

The 8-Channel Module offers universal use for all lighting tasks in functional model-making. Up to 8 electrical- and lighting circuits can be implemented and thereby, two different operating voltages can be used. Via a Windows PC, you can program the module with our software per USB. For each channel five freely programmable light sequences are programmable, which can be selected via servo travel from -100% to +100%. Additionally, the speed of the light effect can be configured on the module depending on personal taste and on the scale of the model.



Scheda Tecnica

  • Control side receiver 4.8-9.6V
  • Only ca. 18g (without cable)
  • Dimension: 50x60x8mm
  • Light signals 8 Channels with 3A to 30V, pulse load up to 5A
  • Total load up to 2x5A
  • Galvanically isolated circuits
  • Operation possible without RC signal
  • Smooth shifting programmable
  • Freely programmable effects sequences
  • 2 programmable servo outputs for landing lights, undercarriage or fireworks
  • 2 permanent and 5 freely programmable light sequences for selection, all with variable speed
  • Freely available Windows configuration software
  • Assistence function for production of standard light signals
  • Storing and exchanging of profiles
