Scorpion motore brushless S-3020-890 KV (V2)

Scorpion motore brushless S-3020-890 KV (V2)

Scorpion motore brushless S-3020-890 KV (V2)

Codice: SC-S3020890

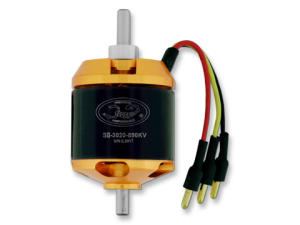

Motore brushless Scorpion S-3020-890 KV
Prezzo:
€ 98,61
Listino:
Risparmi:
(%)

Scheda Tecnica

Specifications
Stator Diameter 30.0 mm (1.18 in)
Stator Thickness 20 mm (0.79 in)
No. of Stator Arms 12
No. of Magnet Poles 14
Motor Wind 10 Turn Delta
Motor Wire 14-Strand 0.25mm
Motor Kv 890 RPM / Volt
No-Load Current (Io) 1.42 Amps
Motor Resistance (Rm) 0.020 Ohms
Max Continuous Current 45 Amps
Max Continuous Power 780 Watts
Weight 166 Grams (5.81 oz)
Outside Diameter 37.50 mm (1.47 in)
Shaft Diameter 5 mm (0.19 in)
Body Length 45.75 mm (1.80 in)
Overall Shaft Length 74.5 mm (2.93 in)
Weight including packaging
310.5g

sostituisce il S-3020-14
