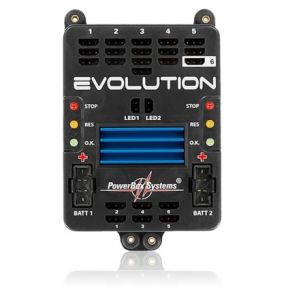

PowerBox EVOLUTION

PowerBox EVOLUTION
Prezzo:
€ 202,31
Per acquistare questo articolo inviaci un'email a ordini@8fly.it

Descrizione

Clicca qui per vedere le istruzioni d'uso.

Centralina elettronica doppia alimentazione servi e ricevente

Scheda Tecnica

  • Double linear voltage stabilisation for receiver and servos, supplying 5.90 Volts
  • Power handling up to 2 x 10 Amps
  • For 7.4 Volt LiPo batteries (PowerBox Battery) or 5-cell NC or NiMH batteries
  • 5 channels remotely accessed from the receiver
  • 5 two-way signal amplifiers
  • 16 servo sockets on the backer
  • Interference suppression for all 16 servo inputs (no ferrite rings required)
  • Independent IC-controlled voltage monitors (LED chains)
  • Two external ultra-bright warning LEDs
  • Minimum voltage memory (low voltage memory) for both batteries, can be read individually
  • Two integral electronic switches, controlled by the SensorSwitch
  • Operating voltage range 4.0 to 9.0 Volts
  • Temperature range -10° to +55° C
  • Voltage loss approx. 0.35 Volts
  • Current drain 25 mA
  • Weight only 115 grammes complete with all cables and SensorSwitch
  • Download
