Codice: OPT4285
SEOUL Power LED 3 watts heat sink + cable rossa 130°
Prezzo:
€ 13,23
Listino:
Risparmi:
(%)
Al momento non è disponibile

Descrizione

Confezione contenente 1 pz.

Warning notice: This LED is extremely bright!

Don't look directly into the illuminated LED! The brightness may cause damages of the retina or the eye.

This SEOUL 1 chip LEDs are unsurpassed in their efficiency so they are used even in power saving lamps. As an alternative to conventional fluorescent lamps or glow lamps the LED makes history in the lighting engineering industry. Due to special own patent based phosphor and housing technologies this LED stands out due to maximum light flux, very good thermic resistance coefficient and high heat conductance. This SEOUL LED belongs to the most efficient and brightest high power electroluminescent diodes in the world. EMCOTEC offers the LED in different colors. So the SEOUL LEDs are also the perfect illuminant for bright illuminating of semi scale and scale models.

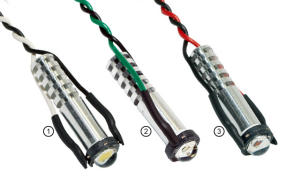

The emitter is mounted on the suitable heat sink and made-up with 30cm (12in) connection cables. The color of the connection cable matches to the LED's color. The LED should not be illuminated longer than 10 minutes without interruption. With good cooling (large heat sink) a permanent operating is possible. The temperature of the LED or the heat sink should not exceed 70°C (158°F).

Before using a suitable resistor must be soldered. Find an overview of suitable resistors within the section Scheda tecnica.

Packing includes 1 piece.

This item is available in different variants. Please select the desired variant.

Scheda Tecnica

Warning notice: This LED is extremely bright! Don't look directly into the illuminated LED! The brightness may cause damages of the retina or the eye.

2.5 watt operating: Nominal wattage, good cooling necessary. Normal brightness.
Color White Red Green
Brightness 180lm 86lm 126lm
Angle of radiation 127° 130° 130°
max. current 700mA 700mA 700mA
Voltage 3.60V 2.60V 3.60V

R at 1S LiPo 0R82 2R2 0R82
R at 4.8V NiMH 2R7 3R9 2R7
R at 2S LiPo 6R8 8R2 6R8
R at 2S LiFePO4 4R7 6R8 4R7

R=Resistors with 3W wattage at LED nominal performance

3.7 watt operating: Peak performance for blink and flash operating. Highest brightness.
Color White Red Green
Brightness 240lm 108lm 182lm
Angle of radiation 127° 130° 130°
max. current 1000mA 800mA 1000mA
Voltage 3.70V 2.70V 3.70V

R at 1S LiPo 0R47 1R8 0R47
R at 4.8V NiMH 1R8 3R9 1R8
R at 2S LiPo 4R7 6R8 4R7
R at 2S LiFePO4 3R3 5R6 3R3

R=Resistors with 3W wattage at maximum LED performance

Color White Red Green
Operating temperature -40°C to 85°C
-40°F to 185°F
-40°C to 85°C
-40°F to 185°F
-40°C to 85°C
-40°F to 185°F
Storage temperature -40°C to 100°C
-40°F to 212°F
-40°C to 100°C
-40°F to 212°F
-40°C to 100°C
-40°F to 212°F
