The RC Switch is a wireless ON / OFF switch for special JETI model products (such as Jeti BEC's, Central Box and others). Settings and functions are set using the Jeti model DS / DC transmitter RC Switch is designed exclusively for this transmitter series.
The switching output is configured as "signal line" output (switch actuator for auxiliary devices such as Central Box, etc.).

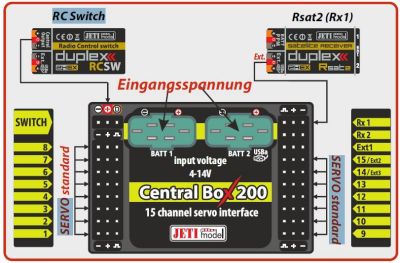

Devices, such as the Central Box 200, have a special slot for the RC switch. Various devices (with magnetic switch actuator, such as the MAX BEC 2D, DSM10 ...) can be connected directly to the RC switch. For that you separate the three-wire connection to the magnetic switch actuator and connect / solder these three cores correct colors (brown - brown, orange - orange ...) with the connection cable of the RC switch. These safety-related work You should also passed a professional repair shop for RC components.
|Input voltage (V)||3.3 - 51|
|Current consumption in the "ON" mode||Type. 20mA|
|Current consumption in the "OFF" mode||Type. 80uA|
