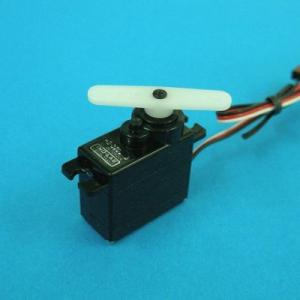

INO-LAB servo digitale HG-D202MG

INO-LAB servo digitale HG-D202MG
Listino:
€ 36,50
Prezzo:
€ 17,90
Risparmi:
€ 18,61 (51%)

Descrizione

TECHNICAL DATA
CONTROL SYSTEM: PULSE WIDTH CONTROL
OPERATING VOLTAGE: 4.8-5,6V ONLY (controllers with switching BEC)
OPERATING TRAVEL: 30°/ ONE SIDE PULSE TRAVELING 370usec
DIRECTION: COUNTERCLOCKWISE/ PULSE TRAVELING 1500 TO 1870
TEST VOLTAGE: AT 4.8V
OPERATING SPEED: 0.16sec/60°
STALL TORQUE: 2.5Kg.cm(34.72oz.in)
DYNAMIC TORQUE: 2.0Kg.cm(27.77oz.in)
IDLE CURRENT: 6.0mA AT STOPPED
RUNNING CURRENT: 200mA AT NO LOAD
DEAD BAND WIDTH: 2u

FEATURES
AMPLIFIER TYPE: DIGITAL PULSE WIDTH CONTROLLER & FET DRIVER
LONG LIFE POTENTIOMETER : 500,000 cycle
MOTOR TYPE : METAL BRUSH 3POLE MOTOR
TOP BALL BEARING: MR74 BALL BEARING
GEAR MATERIAL: HEAVY DUTY CARBONITE GEARS & METAL GEAR
HORN GEAR SPLINE: 15 SEGMENTS/ Ø3.96(FUTABA TYPE)
SPLINED HORNS: 4 CLASS
CONNECTOR WIRE LENGTH: 150mm(5.91in)
CONNECTOR WIRE STRAND COUNTER : 0.12mmx7EA

Scheda Tecnica

DIMENTIONS

SIZE: 23.0x11.4x24.1mm(0.91x0.45x0.94in)
WEIGHT: 9.77g(0.34oz)
