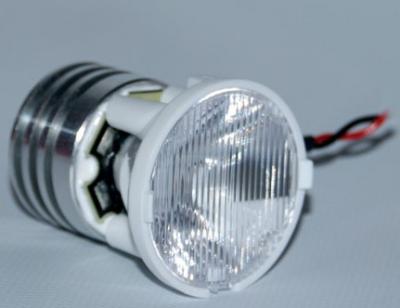

Landing lights with 29mm (1.14in) diameter. Available with three different optics. Extremely bright at a low electricity consumption because of use of 3 watt emitter technics.
The landing light is fitted ready with 30cm (11.81in) of wire. Don't forget suitable resistors and cooling for operation! When using the variant "lamella optic" the lamellas of the optic must aligned vertically!
Attention: Within continuous operation the LEDs must not be illuminated longer than 15 minutes. The LEDs are going to be very hot!
Attention: Landing light is very bright, don't look into the cone of light from closer distance.
Before using a suitable resistor must be soldered. Find an overview of suitable resistors within the section Scheda tecnica.
Delivery includes resistor for 1s LiPo battery.
This item is available in different variants. Please select the desired variant.
R=Resistors with 3W wattage at reduces LED performance
| Color | White | Warm white |
|---|---|---|
| max. current | 700mA | 700mA |
| Voltage | 3.60V | 3.60V |
| R at 1S LiPo | 0R82 | 0R82 |
| R at 4.8V NiMH | 2R7 | 2R7 |
| R at 2S LiPo | 6R8 | 6R8 |
| R at 2S LiFePO4 | 4R7 | 4R7 |
R=Resistors with 3W wattage at LED nominal performance
| Color | White | Warm white |
|---|---|---|
| max. current | 1000mA | 1000mA |
| Voltage | 3.70V | 3.70V |
| R at 1S LiPo | 0R47 | 0R47 |
| R at 4.8V NiMH | 1R8 | 1R8 |
| R at 2S LiPo | 4R7 | 4R7 |
| R at 2S LiFePO4 | 3R3 | 3R3 |
R=Resistors with 3W wattage at maximum LED performance
| Color | White | Warm white |
|---|---|---|
| Operating temperature | -40°C to 85°C -40°F to 185°F | -40°C to 85°C -40°F to 185°F |
| Storage temperature | -40°C to 100°C -40°F to 212°F | -40°C to 100°C -40°F to 212°F |
